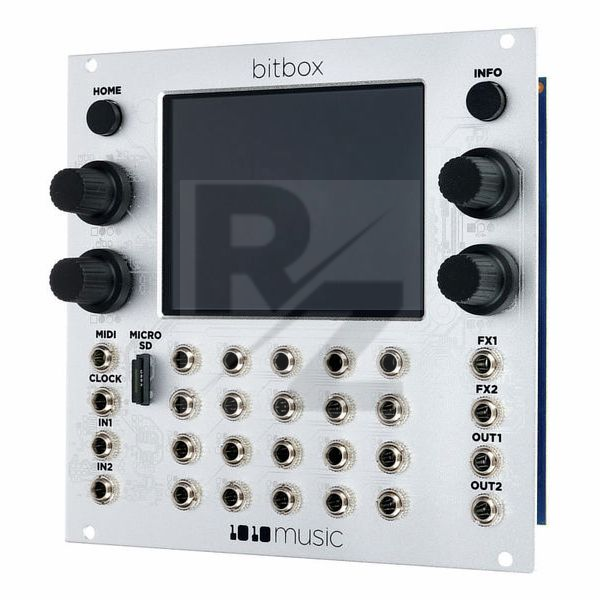

1010music bitbox MK2

Technical Data

• Manufactured by 1010music
• Released in 2020
• Average price : $730
• Sampler & Looper
• Playback of up to 24 stereo voices (if all samples fit into the internal 64 MB memory) or up to 8 stereo streams (up to 4 GB files) directly from microSD card
• 16 Stereo sample pads per preset for single/multisamples, clips, slicers or granular sounds
• Parameters controllable via CV or MIDI (including MIDI learn function)
• Definable, bar-based recording length
• Internal re-sampling of the master out without additional wiring
• Automated creation of multisamples via CV
• DC coupled inputs and outputs with Eurorack level
• Up to 8 CV inputs for modulating sample parameters
• 16 Dedicated gate inputs for triggering the 16 sample pads
• Free routing of the sample pads to the two stereo outputs
• Dedicated clock input
• Internal effects: delay and reverb
• 3.5" Touch screen
• 24-Bit ADC and DAC
• Current consumption: +12V 400mA -12V 0mA, 5V 0mA
• Construction: Eurorack module
• Width: 26 HP
