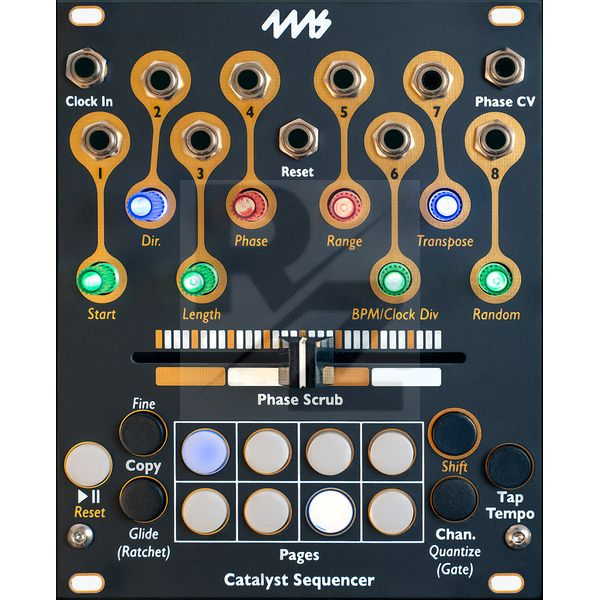

4ms Catalyst Sequencer

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by 4ms
Average price : $444
8-Channel step sequencer
Each channel can output either control voltage (range: -5V to +10V) or gate signals
The steps (scenes) can be played sequentially via clock signal or selected directly via phase scrub slider or phase CV
Adjustable per channel: length (1-64 steps), start, playback direction, phase, transposition, clock divider and random/probability
Quantiser with 14 selectable scales per channel
Adjustable pulse width and swing per step in gate mode
8 Memory locations for sequences
8 CV or Gate outputs
Clock and reset inputs
Tap tempo button
Power requirement: 60 mA (+12 V) / 25 mA (-12 V)
Width: 20 U
Depth: 24 mm
