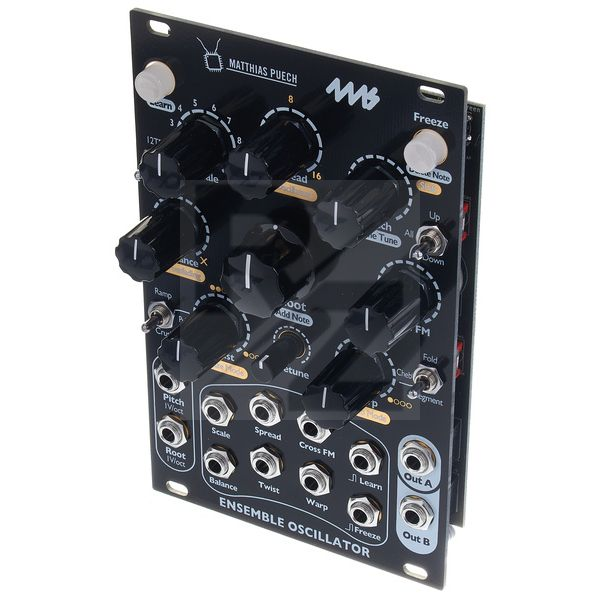

4ms Ensemble Oscillator Black

Eurorack Module

100/100

based on 1 review.

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

3 years ago

The Ensemble can admittedly be somewhat tricky to set up, but with a little modulation it provides an incredible breadth of awesome sounds.

Tons of fun to play with, it was the perfect counterpoint to the other (all analog) oscillators in my rack.

Manufactured by 4ms
Released in 2022
Average price : $360
Polyphonic oscillator with up to 16 voices oriented to intervals of one of the 30 selectable scales
User scales can be programmed on the module or via CV keyboard
Basic sine waveform with phase distortion, wave folding, FM and cross modulation options
Spread control for detuning the oscillators
Controls for fundamental, pitch (transposition) and detune
Balance knob controls the weighting between low and high-pitched oscillators
Adjustable Cross FM with three selectable modes
Twist control with three selectable modes for phase distortion effects (bit reduction and morphing from sine to sawtooth or square)
Warp control with three selectable modes for creating different wavefolding sounds
CV inputs for all parameters
CV inputs for pitch and fundamental (1V/oct.)
Learn and Freeze buttons, each with trigger input
Two audio outputs
Current consumption: 114mA (+12V) / 45mA (-12V)
Width: 16 TE
Depth: 25 mm
Black front panel
