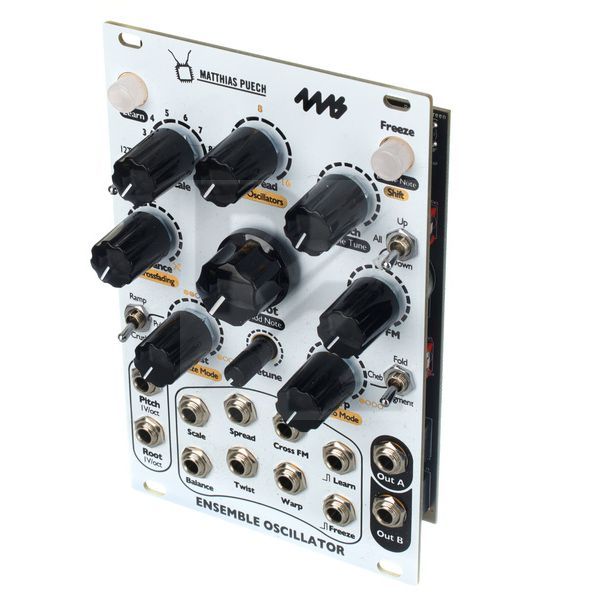

4ms Ensemble Oscillator

Oscillator (Eurorack Module)

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by 4ms
Released in 2022
Average price : $360
Polyphonic oscillator with up to 16 voices based on intervals of one of 30 selectable scales
User scales can be programmed on the module or via CV keyboard
Basic sine waveform with phase distortion, wave folding, FM and cross-modulation options
Spread control for detuning the oscillators
Controls for fundamental, pitch (transposition) and detune
Balance knob controls the weighting between low and high-pitched oscillators
Adjustable Cross FM with three selectable modes
Twist control with three selectable modes for phase distortion effects (bit reduction and morphing from sine to sawtooth or square)
Warp control with three selectable modes for creating different wavefolding sounds
CV inputs for all parameters
CV inputs for pitch and fundamental (1V/oct.)
Learn and Freeze buttons, each with trigger input
Two audio outputs
Power consumption: 114 mA (+12 V) / 45 mA (-12 V)
Width: 16 U
Depth: 25 mm
White front panel
