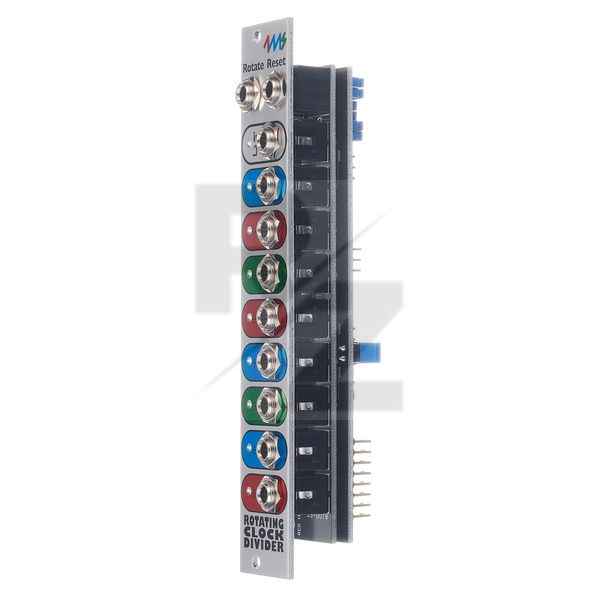

4ms Rotating Clock Divider

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by 4ms
Released in 2022
Average price : $212
Voltage controllable clock divider with 8 outputs
Clock and reset input
8 Clock outputs with even and odd divider factors
Rotate CV input (range 0V to +5V) shifts the different dividers at the output sockets
Configurable via jumpers: gate/trigger mode, extended division up to /64, spread mode, auto reset, counting direction ascending or descending
Expandable with 4ms RCD breakout module (art. 545216)
Current consumption: 33mA (+12V) / 4mA (-12V)
Width: 4 TE
Depth: 35 mm
