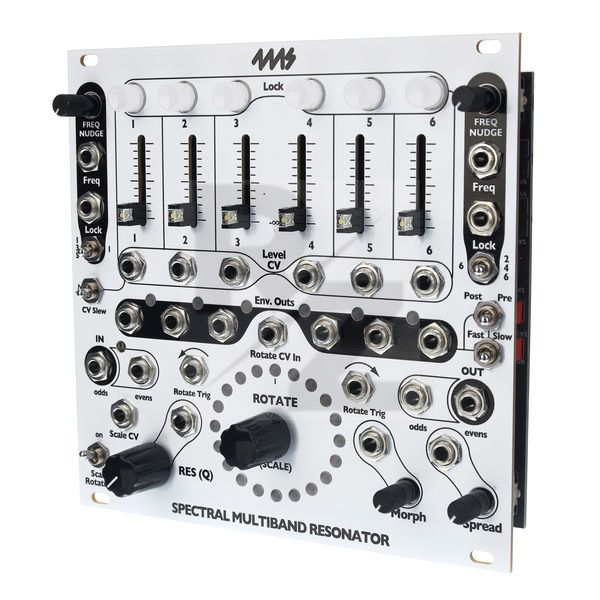

4ms Spectral Multiband Resonator

Multiband Resonator

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by 4ms
Released in 2022
Average price : $541
Tunable 6-channel bandpass filter and resonator
The frequency of each filter / resonator is quantisable to one of 11 tone scales and/or follows the pitch CV
Level fader with CV input and lock button per channel
Envelope follower output per channel
Two pitch inputs (1V/oct.) for even and odd channels, each with switchable locking function
Resonance control with CV input
Rotate encoder (with CV and trigger inputs) transposes all bands within the defined tone scale
Morph and spread control with CV input
Scale CV input
Stereo input and output
Power consumption: 110mA (+12V) / 28mA (-12V)
Width: 26 U
Depth: 24 mm
