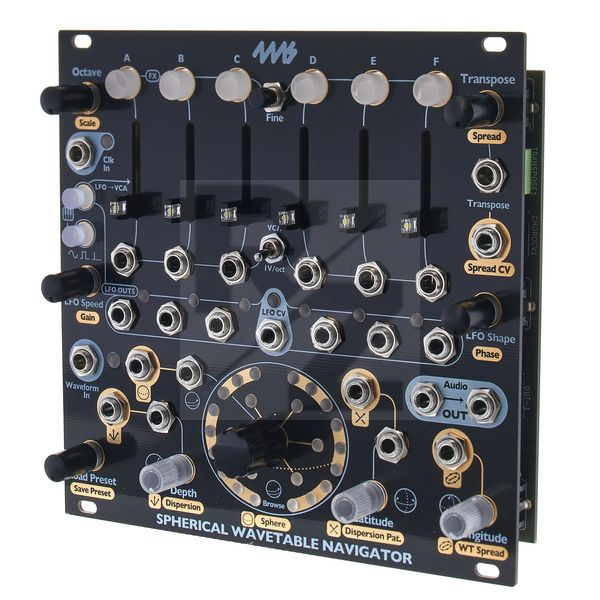

4ms Spherical Wavetable Navigator

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by 4ms
Released in 2022
Average price : $730
6-Voice wavetable oscillator
Pitch, level and waveform per oscillator controllable and adjustable
LFO per oscillator that can also be used as an envelope (25 waveforms, adjustable phase, CV input for LFO frequency)
Level control and mute button per voice, pitch input (1V/oct.) switchable for VCA control
12 Internal wavetables (each with 27 waveforms) and memory for 108 user wavetables
Wavetables can be created on the module or via computer (PC, Mac, Linux) using an editor
Overlapping CV inputs for transposition 1V/oct., LFO frequency and wavetable navigation
Clock input for LFO synchronisation
Memory for 108 user presets
Stereo audio output
Power consumption: 185mA (+12V) / 30mA (-12V)
Width: 26 TE
Depth: 25 mm
