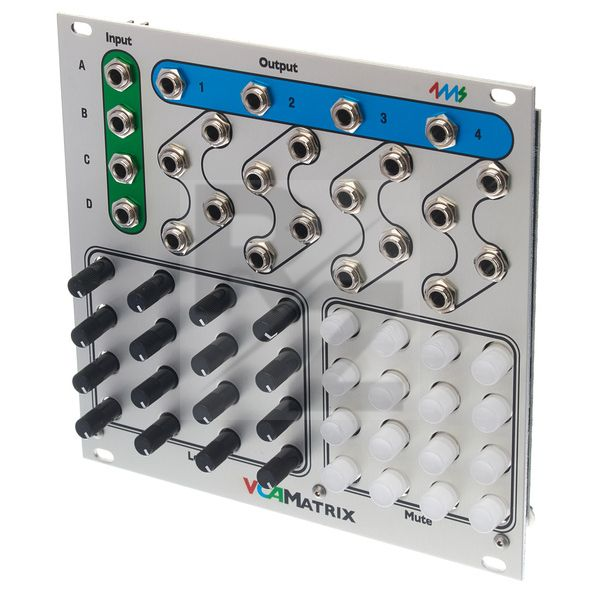

4ms VCA Matrix

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by 4ms
Released in 2022
Average price : $424
Playable 4x4 matrix with 16 VCAs
4 Inputs and outputs
Suitable for CV and audio signals (frequency range: 0Hz - 20kHz)
Per VCA: CV input, illuminated mute button and gain control (-100dB to +20dB)
Brightness of the buttons symbolises the setting of the gain control or the CV control signal
Several VCA matrix modules cascadable (4x8, 8x8, 12x4 etc.)
Current consumption: 110mA (+12V) / 32mA (-12V)
Width: 26 TE
Depth: 25 mm
