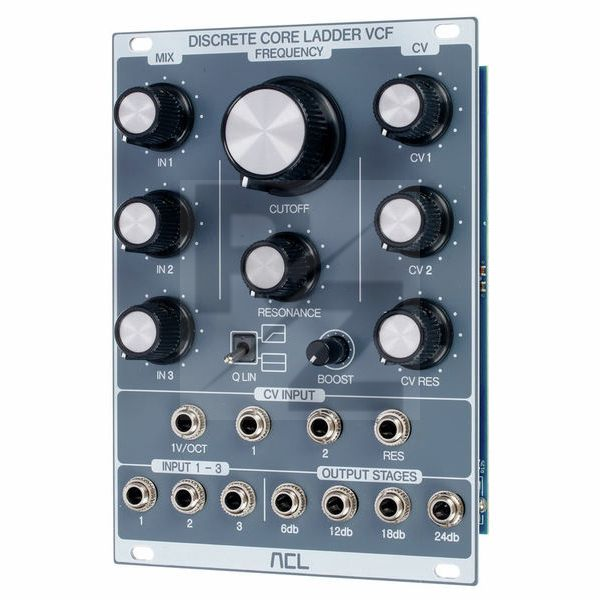

ACL Discrete Core Ladder Filter VC

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by ACL
Released in 2018
Average price : $523
Classic 24dB transistor cascade
Fully discrete, low-noise and low-distortion audio path
3-Channel mixer
3 x Input for the filter frequency (1x to 1V / octave adjusted, 2x freely adjustable) and 1x resonance input
Bass Boost control
Buffered output for each of the four filter stages (Filter outputs are available with 6, 12, 18 and 24dB slope)
Current consumption: approx. 65mA at -12V / approx. 65mA at + 12V
Dimensions (W x H): 18 HP x 22 mm
