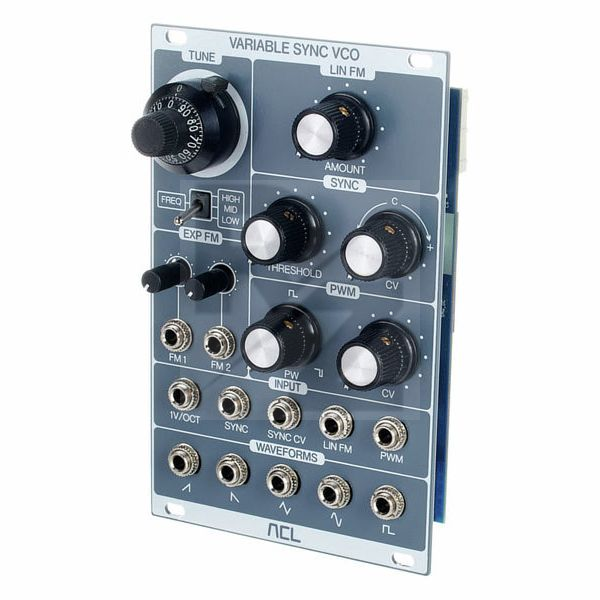

ACL Variable Sync VCO

Eurorack module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by ACL
Released in 2018
Average price : $505
Oscillator core simultaneously produces five waveforms (ramp, sawtooth, pulse, triangle and sine)
Linear FM
Three switchable speed ranges
Knob with 10 turns for exact frequency adjustment
Flexible sync with voltage-controllable threshold for the transition from "no sync" to "soft sync" to "hard sync"
Three possible frequency ranges selectable via switch
Two attenuator inputs (for exponential and linear FM)
1V / oct input
2 Frequency MOD inputs
Sync Input
Sync-Threshold CV input
FM and PWM input
Waveform outputs: Ramp, Sawtooth, Triangle, Sine, Pulse
Current consumption: approx. 35 mA at -12V / approx. 40 mA at + 12V
Dimensions (W x D): 16 HP x 22 mm
