Acoustic Image UpShot 1 Combo 680 U1

Combo for Double Bass

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Acoustic Image
Released in 2020
Average price : $1389

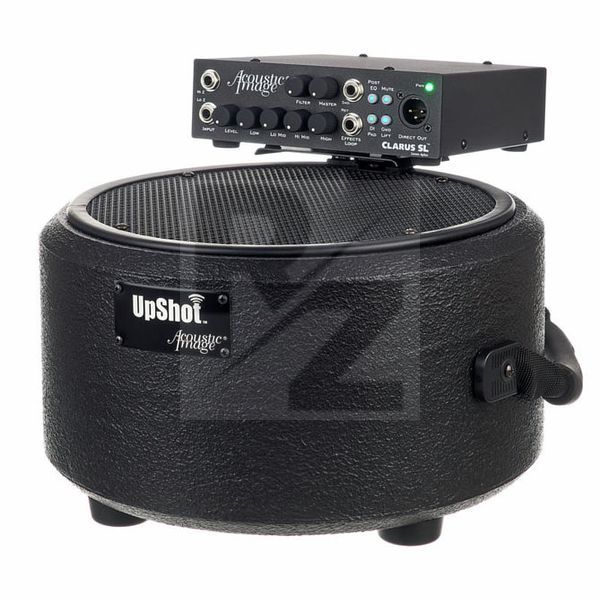

Consists of Upshot Speaker Cabinet with Clarus SL606 IA amplifier
Includes mounting bracket and speaker cable
One 10" woofer radiating upwards
Well suited for acoustic and electric instruments like guitar, double bass, keyboard etc.
Rated power: 300W
Impedance: 8 Ohm
Frequency range: 40 - 4.000 Hz
Max SPL: 113 dB/m
Input: Neutrik Speakon with pole 1 assignment
Diameter: approx. 30.5 cm
Height: approx. 15.3 cm
1 Channel
600 Watts
650 Watt music power into 4 Ohm
Without effects
4-Band EQ
Adjustable low cut filter
Effects loop
Direct-Out with switchable 10 dB boost/cut
Pre/Post and Ground Lift switch
Mute switch
6.3 mm LoZ and HiZ jack inputs for optimum matching to piezo pickups
Speaker outputs with Speakon connectors
Weight : approx. 1.2kg
Dimensions: approx. 5.3 x 18.3 x 18.8 cm
