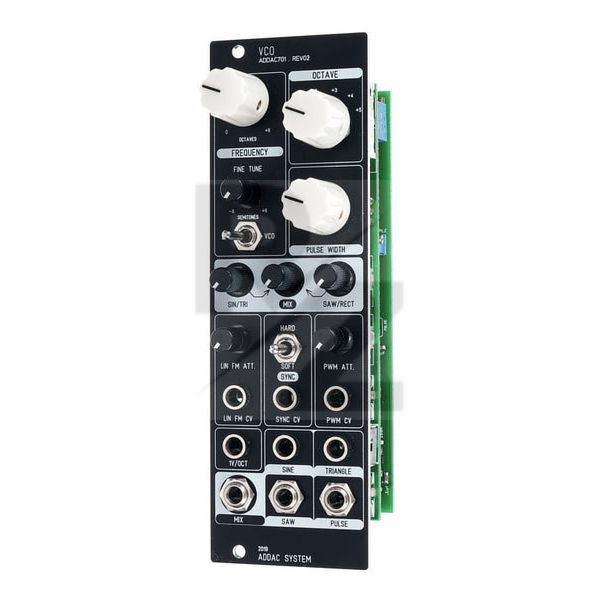

ADDAC 701 Rev2 VCO
Eurorack Module
Latest User Reviews
loads of function in a tiny space and all analog
FM, sync, many outputs including a mixed waveform output, octave switch and all analogue in such a tiny space. Great bottom end. Very good!
Technical Data
- Manufactured by ADDAC
- Released in 2020
- Average price : $195
- Analogue oscillator based on CEM3340
- Frequency/tuning control (control range: 6 octaves)
- Fine-Tune control (control range: 12 semitones)
- Octave selector switch
- Selector switch for LFO or VCO operation
- Adjustable pulse width
- Mix section for mixing all available waveforms
- PWM CV input with attenuator
- Linear FM input with attenuator
- Sync input (switchable between hard and soft sync)
- 1 V/Oct CV input
- Outputs for mix, sine, triangle, sawtooth and pulse wave
- Current consumption: 60 mA (+12 V) / 60 mA (-12 V)
- Width: 8 HP
- Depth: 35 mm
