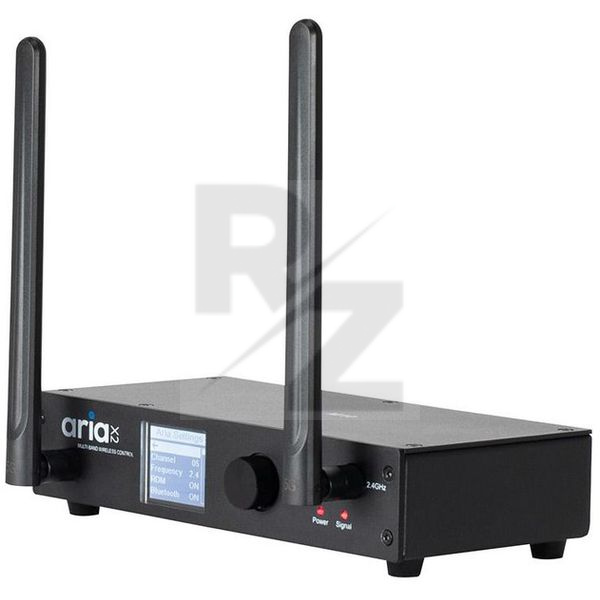

ADJ Aria X2 Transceiver

Technical Data

• Manufactured by ADJ
• Transmitter and receiver unit of the Aria Wireless Management System
• Single DMX Universe: 512 channels
• 900 MHz, 2.4 GHz WiFi and Bluetooth
• Configuration via app or front panel
• Wireless to DMX or DMX to wireless
• Supported protocols: DMX, Aria X2 Mesh protocol
• Bluetooth 5.2 (BLE)
• Aria X2 seriall protocol
• Frequency range: 863-870 MHz (EU)
• Antenna connector: 5G JT SMA
• DMX connection: XLR 5 Pin In / Out
• Power connection: Power Twist TR1 In / Out
• Power supply: AC100-240V 50/60Hz
• Power consumption: 2W
• Fuse: T1.25A/250V (5 x 20 mm)
• Aluminium / metal housing: IP20
• Front panel display and rotary knob
• Safety eyelet
• Rack and wall mounting accessories
• Dimensions (L x W x H): 16 x 22 x 4 cm
• Weight : 1.23kg
