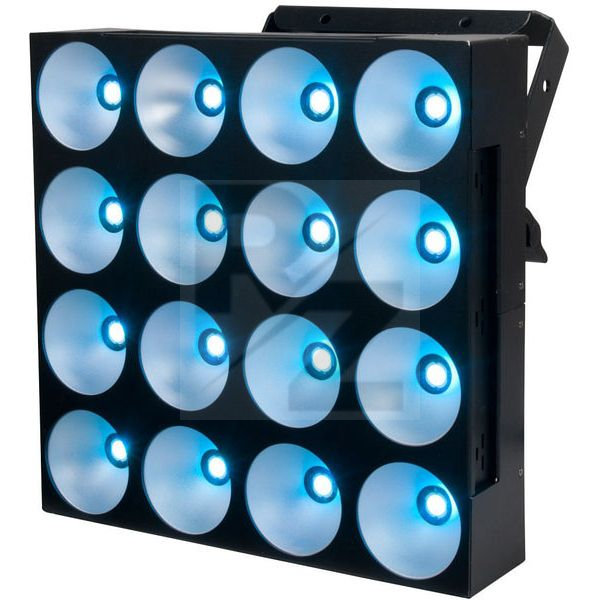

ADJ Dotz Matrix
Wash-/Glare Effect
Latest User Reviews
8 years ago
A fantastically amazing light
It?s a bit big and bulky. It could easily get damaged as it?s quite heavy.
It also does not like being put on a tripod unless it?s hung. The bracket is not designed in this way.
It it is mega powerful and I only need 2 in my disco set up.
You need to tame this beast with Dmx and pixel mapping gives an amazing effect.
Technical Data
- Manufactured by ADJ
- Released in 2014
- Average price : $844
- With integrated advanced COB LED technology for powerful light output with compact dimensions
- The result is a highly charged and powerful wash effect with a smooth mixture of the device through the 16 three-colour COB LEDs with 30 W
- The Dotz Matrix lets you create great pixel effects, plus a massive and powerful (480 W) beam angle of 60 degrees
- Electronic dimmer 0 - 100%
- Pulse and strobe effect
- Integrated shows and colour macros as well as a 4-button DMX LCD display
- PowerTwist AC In/Out
- 5 Selectable dimmer curves for stage lighting
- 4 Pixel change options and 5 DMX channel modes
- The Dotz Matrix can be operated in stand-alone mode via integrated programs, music control or via DMX controller
- - Wash/blend effect with pixel matrix and 4 x 4 high-light COB LEDs
- COB Technology (Chip On Board) provides a high-performance, smooth RGB colour mixing with a large colour selection
- - Use as a wash/blend effect with pixel matrix for great visual effects
- Ideal for stage lighting, bands and nightclubs
- 5 DMX Channel modes: 3, 6, 7, 48 & 52 channels
- Single pixels are controllable in 48- and 52-channel DMX modes
- 4 Pixel change options for changing pixel orientation
- Four operational modes: Auto mode (program playback)
- Sound Active Mode
- Manual RGB dimmer
- Static colour mode and DMX-512 mode
- Compliant with RDM (Remote Device Management)
- Preinstalled colours and programs
- Smooth operation (flicker free during shootings)
- LED with pulse and strobe effect
- Electronic dimming: 0 - 100%
- 5 Selectable dimmer curves (standard, stage, TV, architecture and cinema)
- 60 Degree beam angle
- 3-Pin and 5-pin XLR connectors for chassis construction for a DMX connection
- PowerTwist AC IN/OUT for serial connection (up to 5 Dotz Matrix devices at 120 V and 9 Dotz Matrix devices at 230 V in a 20 A circuit)
- Power consumption: Total 580 W (all LEDs at full power)
- 4-Button DMX LCD display
- Including a simple mounting bracket for fixing the device
- Fan cooled
- Light source: 16 x 30 W COB TRI LEDs (RGB: 3-in-1)
- Automatic voltage detection: AC 100 V, 60 Hz - 240 V, 50 Hz
- Dimensions (L x W x H): 345 x 170 x 370 mm
- Weight : 7.8kg
