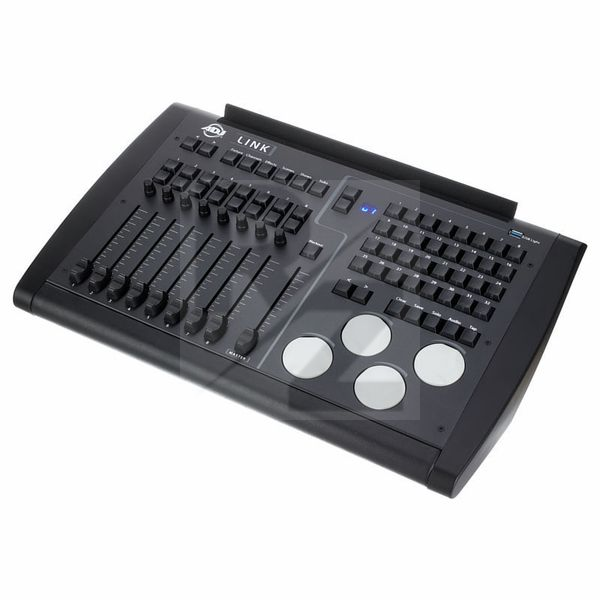

ADJ Link

Technical Data

• Manufactured by ADJ
• Released in 2021
• Average price : $762
• Suitable for controlling DMX devices with the special Airstream LINK iOS app for iPad
• LINK creates a private standalone 2.2 or 5 GHz Direct Sequence Spread Spectrum (DSSS) WLAN network that coexists in full RF environments alongside other wireless technologies for connectivity between iPAD and ADJ Link Controller
• Wired connection possible via an Apple Camera USB Adapter
• LINK is ideal for small production events, nightclubs, bars or events or venues that require the flexibility of a wireless iPad control and are looking for a robust 4 DMX universes APP-based lighting control solution
• Control: 6 universal buttons; 1 master and 8 control 100 mm faders; 16 side playback buttons over the faders
• 8 Rotary knobs with a push-in selection above the faders
• 1 Blackout button
• 32 Buttons for instant effects or scenes
• 8 Bump / momentary effect buttons
• 4 Encoders with push-in selection
• 4 DMX outputs with 5-pole connectors
• 2.4 and 5 GHz DSSS WLAN network for iPad connection
• USB 2.0 type "B" port for wired connection to iPad (with optional Apple camera / USB adapter, not included in the delivery)
• USB type "A" for gooseneck work light
• Removable outer casing for 6U rack mounting
• Kensington security lock
• Dimensions (L x W x H): 514 x 328 x 91 mm
• Weight : 6.8kg
• Incl. USB cable, USB lamp, DC9V switching power supply and rack-mounting kit
