ADJ RGBW4C IR

32 Channel RGB, RGBW or RGBA LED Controller

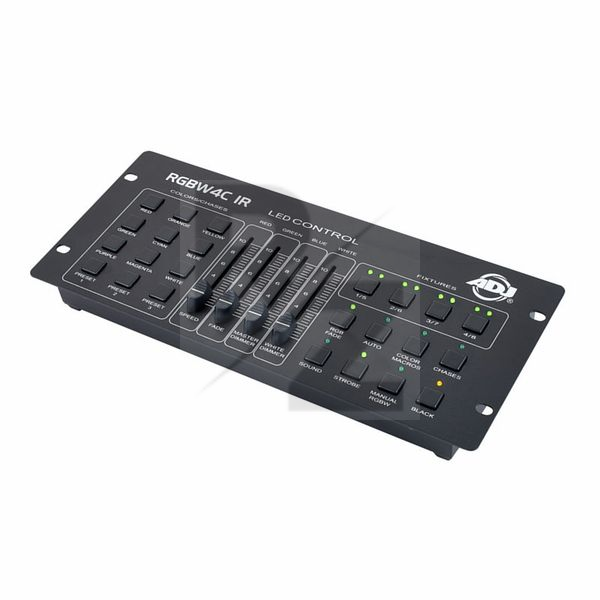

Image ADJ RGBW4C IR

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

2 years ago

Great controller

Best controller for weddings and corporates

3 years ago

Good quality materials but limited functionality

The physical item is good but they don’t do a huge pile!

8 years ago

I did not like this unit but your results may vary.

The good:

- very well built

- sturdy rugged housing

- has plenty of modes

- inexpensive

The bad:

- 4 channel DMX means that setting up the regular DMX lights is a pain and some channels create a lot of issues;

- A lot of pars do not operate in 4 channel mode

- When changing presets it always jumps straight to the setting no way to fade

In the end I could only use the RGB faders for the setup, could not use any other features. And although this functions well, there are cheaper units that can achieve this.

9 years ago

Stable Output.

Very good DMX output.

This unit drives solid 16 dmx RGBWAP bars on Daisy Chain without problems. I did try a few budget mixing & Memory Blocks and the result was always some random flicker at some stage with terminator fitted..

Not with a AJD.

If the finish would be more pro i would pay more for it without question. The Performance is solid.

9 years ago

i just hate it

Sorry but i just hate it

9 years ago

Does exactly what it says it does

A great entry level controller for a small group of RGBW (up to 4 channel) LED DMX lighting units. Some decent pre programmed chases and sequences and a simple to use colour selection when in manual mode.

Highly recommmended for a small set up for a DJ or club.

10 years ago

Best LED controller

It is very easy to use, everything is intuitive and easy to understand!

I use it in all purpose up lighting and small events on stage.

Best thing about this unit is price! It is cheap, but in same time, it has all features needed for LED pars and bars.

Remote control feature is also great, when I need to talk to audience and change the lights, but I'm not behind my DJ table. Only minus, that you have to by remote (LED RC2) separately.

Read all reviews >>

Technical Data

  • Manufactured by ADJ
  • Released in 2015
  • Average price : $63
  • Designed for the control of 3 or 4-channel groups of LED devices, in which channel 1 is red, channel 2 is green, channel 3 is blue, and channel 4 is white or yellow
  • Up to 8 individual devices or device groups
  • All LED devices or groups of devices must be addressed to four channels for operation in the DMX mode so that independent control is possible
  • The control panel of the unit includes 9 static colour / chase buttons for direct access, these include preinstalled colour settings and chase programs
  • 3 User programmable colour preset buttons
  • 4 Multifunction faders for controlling the RGBW saturations during operation as well as the Chase programs "speed", "Fade time" and "Master Dimmer"
  • A series with 8 keys is also used for selecting the mode of operation, including the modes RGB Fade, Auto, hue, Chase, music control, strobe effect, manual RGBW and blackout
  • Ideal for DJs, night clubs, lounges, bars and anyone who wants to control their LED PAR cans, bars, floodlights and panels
  • Colouring playback mode
  • Manual mode for controlling the RGBW saturation levels
  • RGB and Auto modes
  • Controlling the speed and colour of all chase programs during operation
  • Sound Active Mode via built-in microphone
  • Adjustable microphone sensitivity
  • Variable strobe effect
  • Blackout button
  • DMX output connection: 3-pin XLR
  • Power: 12 V DC 500 mA UL approved power supply (included)
  • Power consumption: 3.6 W
  • Dimensions: 327 x 140 x 48 mm
  • Weight : 1.1kg
  • Compatible with the remote control ADJ LED RC2 (sold separately, not included)
