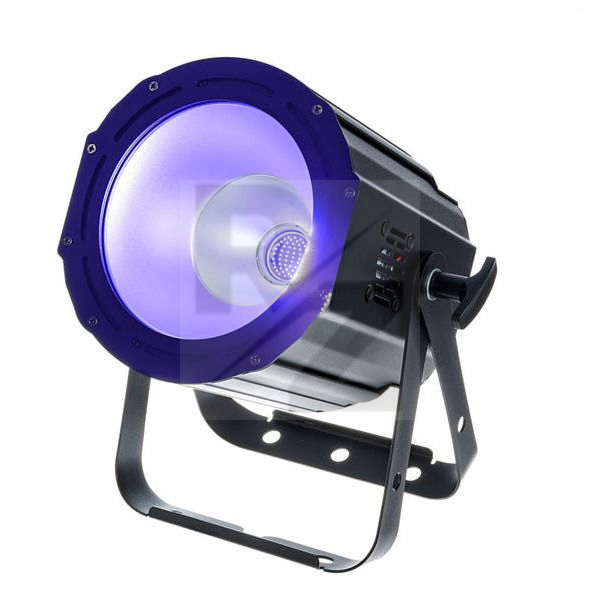

ADJ UV COB Cannon

Technical Data

• Manufactured by ADJ
• Released in 2014
• Average price : $340
• Creates a large wash effect of ultraviolet light
• Features integrated advanced UV COB LED technology for powerful light output and compact dimensions
• This professional lighting device is designed for wash effects on stages, in theatres or as a stand-alone special effect
• Requires almost no maintenance or service due to the integrated semiconductor technology
• 3 Operating modes (music control, manual or DMX mode)
• 3 DMX modes
• 5 Selectable dimming curves
• 4-button DMX display
• Flicker-free operation for film and television
• Can be connected via 3-pin DMX connections
• Can also be connected in series to other devices via Power Twist connections
• Light source: 80 Watt COB cluster of 9x6 (54) 1.5 Watt UV LEDs
• Powerful ultraviolet light source
• Ideal for stages, theatre productions and special lighting effects
• Almost no maintenance required
• Low heat generation
• Low consumption
• Integrated, advanced COB LED technology for strong, uniform UV inks
• 3 Operating modes: music control, manual and DMX mode
• 3 DMX operating modes: 1, 2 or 3 channels
• Digital 4-button DMX display
• Smooth operation (flicker-free during shooting)
• 5 Selectable dimmer curves (standard, stage, TV, architecture and cinema)
• LED with pulse and stroboscope effect
• Electronic dimming: 0 - 100%.
• Beam angle: 33 degrees
• Double bracket system, allowing the unit to be either suspended or placed on the floor
• DMX connectors: 3-pin XLR data connectors
• Connection for alternating current in series connection: Power Twist plug (up to 3 UV COB Cannon units at 120 V and 5 UV COB Cannon units at 230 V)
• Long-life LEDs (approx. 25.000 operating hours)
• Power consumption: Total 110 Watt (all LEDs at full power)
• Light source: 9x6 x 1.5 Watt COB UV LEDs (80 Watt total)
• Switching power supply: Automatic voltage detection, AC 100 V - 240 V/50 Hz -60 Hz
• Dimensions (L x W x H): 131 x 200 x 324 mm
• Weight : 4.32kg
