ADJ Scene Setter 24

Control Device

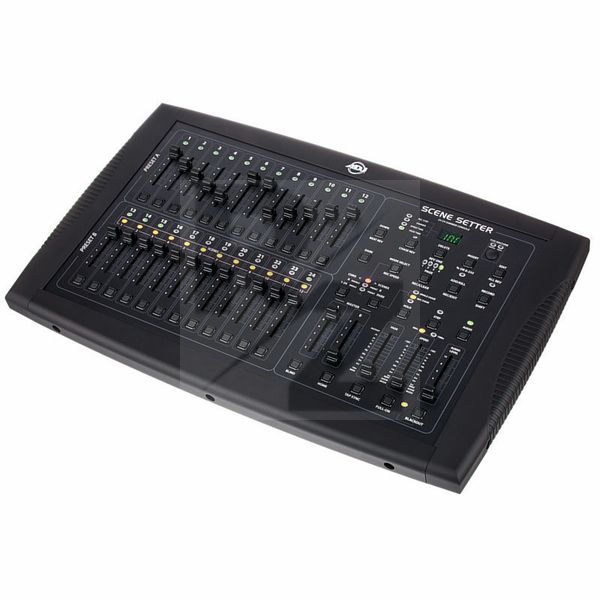

Image ADJ Scene Setter 24

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

10 years ago

Great desk for the small venue and for reliable touring

I use this desk almost exclusively for a touring company for schools. We needed a reliable, quick to set up and easy to use desk. This one give 12/12 or 24 channels, 4 pages of 12 scenes, is extremely quick and easy to set up, reliable, sturdy and is just perfect for the use we put it to.

We run 16 channels of LED and 4 channels of dimmable, leaving 4 channels free for any additional light that we might want to use on the day. Its quick to recall a chase or a scene, easy to edit and so simple to programme that for the price we could not better it.

I would not use it in a large production as it doesn't have the head-room but for schools, small touring companies, and small venues it would be hard to beat.

Technical Data

  • Manufactured by ADJ
  • Released in 2009
  • Average price : $182
  • Conventional DMX dimmer console
  • 24 independent DMX channels
  • 4200 freely programmable scenes
  • Password protection for scenes (ideal for rental)
  • 48 freely programmable, also password protected programs
  • Single-beam or mix function
  • Blind & Dark function
  • Blind programming
  • 24 Single channel fader
  • 24 Flash buttons (one channel per channel)
  • A / B master fader. Transition from one setting to another
  • TAP button to control the speed of the programs
  • Independent speed and fade control
  • FULL-ON button for 100% output on all 24 channels (flashing)
  • Bright LCD display
  • Compatible with all DMX 512 dimmers
  • Sound-to-light control via built-in microphone or RCA audio input on the back
  • Music Sensitivity setting
  • Trigger button for fog machines with status indication (heating / ready)
  • Midi input and output for control via keyboards or MIDI keyboards
  • External 12V DC power supply included (500mA)
  • 19" Rack housing for installation in cases and consoles
  • Included, removable plastic edges for use as a table unit without case
  • Dimensions: 267 x 483 x 76 mm
  • Weight : 5kg
