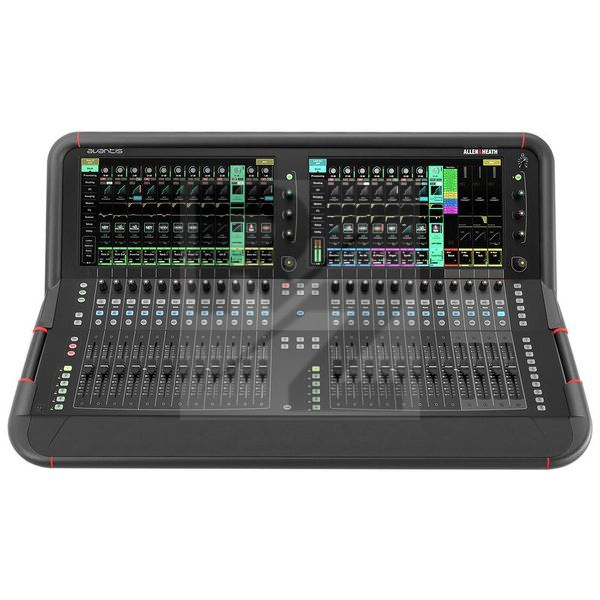

Allen & Heath Avantis

96kHz 64vchannel / 42 buses digital mixing console

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Allen & Heath
XCVI FPGA core with very low latency (0.7ms)
Freely configurable mix bus architecture
The user interface combines physical controls with touchscreen controls for the fastest and most intuitive workflow
16 Dyn8 Multiband-Dynamic Engines
2 RackExtra FX slots with separate stereo returns
16 DCAs
Two 15.6" Full HD displays with capacitive touchscreens with gesture control
AMM (Automatic Mic Mixer) for up to 64 channels across 1, 2 or 4 zones
Fully assignable layout
144 Fader strips (24 faders, 6 levels) with optional master section
SLink port for connection to remote I/O extensions and the ME Personal Mixing System SLink port for connection to remote I/O extensions and the ME Personal Mixing System
12 Analogue XLR inputs
12 Analogue XLR outputs
1 Stereo AES input
2 AES outputs
2 I/O ports for 128x128 at 96kHz each - for optional cards incl. Dante, MADI and gigaACE
User-configurable rotary control
24 Assignable sofkeys
Comprehensive metering with multi-point peak detection
User-configurable rotary control
BNC Word Clock
Dimensions : 917mm x 627mm x 269mm
Weight : 26kg
