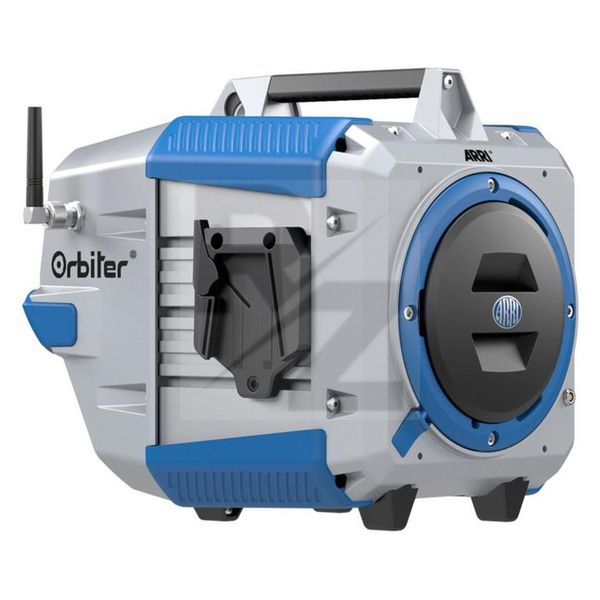

ARRI Orbiter Basic

Technical Data

• Manufactured by ARRI
• Average price : $5690
• Base module without control panel and bracket
• New ARRI light engine ARRI Spectra combines 6 primary colours in a very small space and enables a broad colour spectrum and smooth dimming from 100 - 0%
• Quick Lighting Mount for easy changing of different optics
• Automatic detection and network notification of the installed optics
• Infinitely variable colour temperature from 2,000 to 20,000 K
• Green / magenta adjustment
• Light mode: CCT, HSI, RGBW, XY, Source Matching, Effects Plus, Gel Filter and Sensor Mode
• DMX controllable
• LumenRadio CRMX for wireless DMX control (2.4 GHz)
• Beam angle: 80° (without lens)
• TLCI: > 98
• CRI: > 95
• Power supply: DC 48 V, AC 100 - 260 V, 50 / 60 Hz
• Power consumption: max. 500 W
• Colour: Blue/Silver
• Dimensions: 27.4 x 32.9 x 37.8 cm
• Weight : 11.7kg
• Includes antenna and protective cap
• 1x AC In
• 100 - 250 V Power Twist TR1
• 1x DC In, 48 V (XLR 3-pin)
• 1x DC Out, LEMO 5-pin (f)
• DMX: 5-pin XLR In / Out
• Ethernet RJ45 In/Out
• 1x USB-A (5 V / 0.5 A) (e.g. for LiOS updates)
• 1x USB-A (5 V / 1.5 A)
• 1x USB-C (5 V / 1.5 A)
• 1x SD card slot
• 1x Sync In
