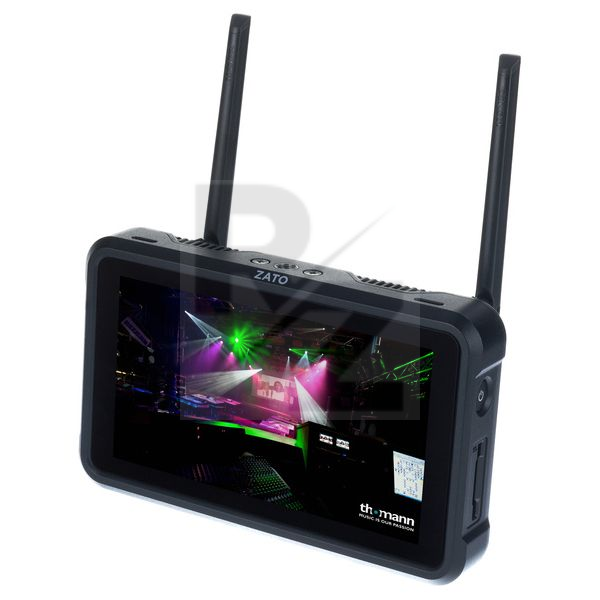

Atomos Zato Connect 5"

Technical Data

• Manufactured by Atomos
• Released in 2022
• Average price : $460
• Livestream directly to Facebook Live, Twitch, YouTube and more
• Compatible with HDMI devices up to 1080p60 or USB webcams up to 1080p30
• Mixing of audio levels from HDMI camera input
• USB webcam and external microphone/line inputs
• Custom PNG overlay graphics to create lower thirds
• Logos and watermarks can be added
• Simultaneous streaming and recording (H.264) and output of the programme
• Conversion of HDMI sources, such as mirrorless cameras, into webcam signals
• Monitor Assist functions such as 2x zoom, 9-grid and extensive frame guides
• Wi-Fi 5 and 1Gb Ethernet (via supplied USB-C adapter)
• NDI|HX-capable (additional licence required)
• Display: 5.2" Touchscreen SuperAtom IPS panel (capacitive)
• Resolution: 1920 x 1080
• Viewing angle: 178° horizontal / vertical
• PPI: 427
• Bit depth: 10-bit (8+2 FRC)
• Brightness: 1000 nits
• Colour gamut: Rec709
• HDMI input/output: 1 x HDMI 1.4 each (up to 1080p60)
• USB in/out Webcam: up to 1080p30
• Bit depth: 8 bit
• Video chroma subsampling: YCbCr 420
• Analogue audio in/out: 3.5 mm jack
• Headphone output: 3.5 mm jack
• Ethernet: via USB-C adapter (included)
• Wi-Fi: W-iFi 5
• Input voltage range: 6.2 - 16.8 V
• Max. power consumption: 20 W
• Compatible battery type: 1x NP-F L-series
• Battery voltage: 7.2 V
• Dimensions: 151 x 29.5 x 91.5 mm
• Weight : 245g
• Included: 2 x Wi-Fi antennas with black caps, 5 x coloured antenna caps: white/red/yellow/black/green, 2 x antenna attachments, 2 x antenna holder cover, 1 x USB-C to USB-C cable, 1 x antenna storage bag and 1 x screen cloth.
