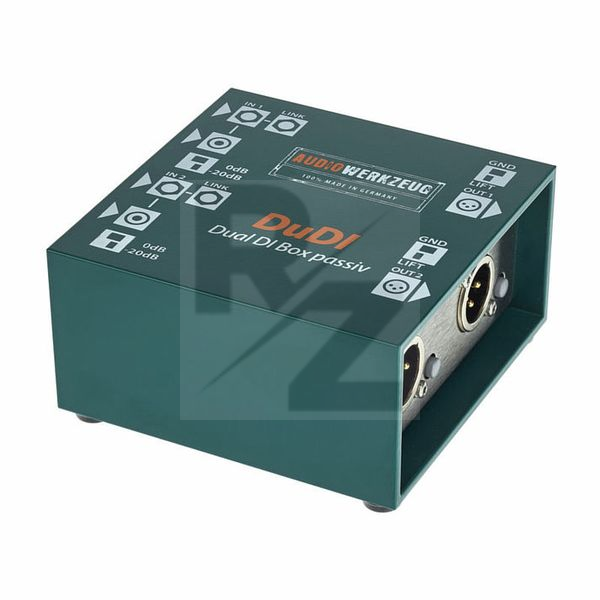

Audiowerkzeug DuDi

Passive 2 Channel DI box

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Audiowerkzeug
Released in 2013
Average price : $195
For balancing and adjusting unbalanced instruments and devices
High-quality high-end transformers
High bandwidth and maximum insulation
Very good output balanced
High level stability
Antimagnetic shielding
Robust aluminum housing
Transmission ratio: 10: 1
Inputs: 6.3 mm jack and RCA
Outputs: 6.3 mm jack Link Out, XLR balanced
Frequency response: 10 Hz - 30 kHz +/- 3 dB at +20 dB input level, 15 Hz - 30 kHz +/- 3 dB at +30 dB input level relative to 2.2 kOhm terminating resistor and 3.3 nF load (= 50 m multicore)
Insulation capacity of the transformer: 1,500 VAC at 50 Hz 1min
Output balance ccording to IEC:> 120 dB at 50 Hz,> 90 dB at 10 kHz
Dimensions (W x H x T): 80 x 50 x 100 mm
Weight : 470g
Handmade in Germany
