B&C 12 PE 32

Loudspeaker

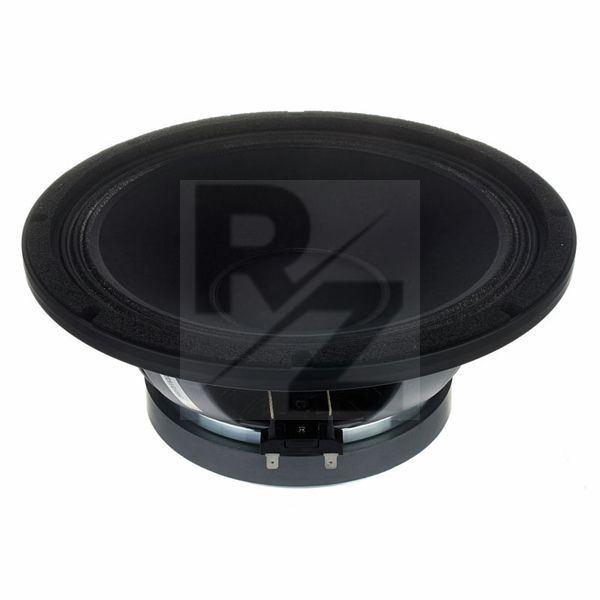

Image B&C 12 PE 32

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

7 years ago

Clear, Detailed and Efficient

I use these for a local Theatre where vocal clarity is critical. These are the most efficient and detailed 12" speakers that I have listened to and I am very happy with them. I would certainly recommend them for applications where efficiency, clarity and detail is required. They reproduce the detail of orchestral recordings.

My only recommendation to the manufacturer would be to use spring terminals rather than spade terminals. However once you connect them you are unlikely to take them out!

One concern I had was that the power rating was relatively low, but that should not be cause for concern because these speakers are efficient and produce a lot of volume for relatively low power input. I use them with a sub crossed over at 100Hz and the highs rolled off at 1.6kHz.

Technical Data

  • Manufactured by B&C
  • Released in 2002
  • Average price : $188
  • Size: Ø 12"
  • Rated power: 250/500 W
  • Resonance frequency FS: 51 Hz
  • Frequency range: 50 up to 4000 Hz
  • Nominal impedance: 8 Ohm
  • Good Qts = 0.18 (Qes=0.19 Qms=7.6)
  • VAS: 101 Litre
  • DC resistance RE: 5.8 Ohm
  • Diaphragm surface SD: 522 cm2
  • SPL: 101.5 dB (1W; 1m)
  • Max. declension Xmax: +/- 2.8 mm
  • Dimensions: Round loudspeaker with Ø 316 mm
  • Bolt circle diameter: Ø 296 mm
  • Baffle cutout diameter: 282 mm
  • Depth of loudspeaker: 134 mm
  • Weight : 7.6kg
