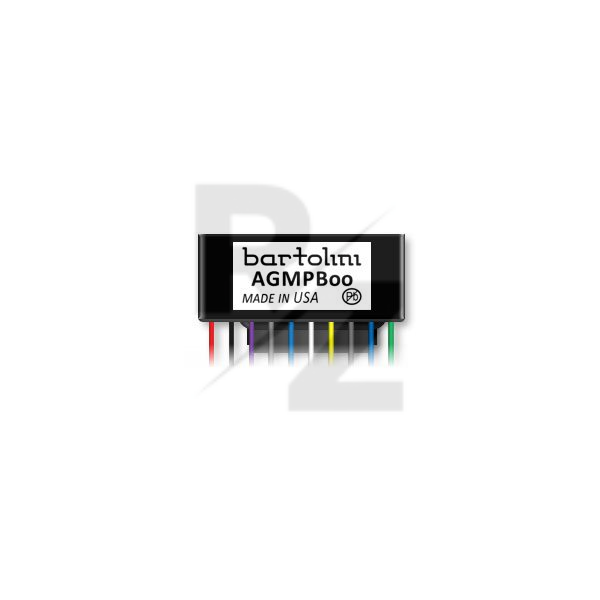

Bartolini Dual Piezo Buffer AGMPBoo Kit

Two-channel buffer preamp set for electric bass

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Bartolini
Clear, transparent sound with extremely low distortion
Suitable for piezo/microphone pickups in combination with magnetic pickups
Two independent buffer circuits to combine two pickups
Circuit identical to AGMPB/918, but with connector for up to 7 plugs of piezo string saddles
Piezo channel input impedance: 3.3 MOhm
Input impedance magnetic channel: 1 MOhm
Output impedance: 3.6 ohm
Per channel adjustable gain up to 12 dB
Supports 18V operation for 6 dB additional headroom
Power supply via 1 x 9V / 2 x 9V (18V) battery (not included)
Dimensions (L x W x H): 26.7 x 20.1 x 10.9 mm
Includes 25 kOhm blend potentiometer
