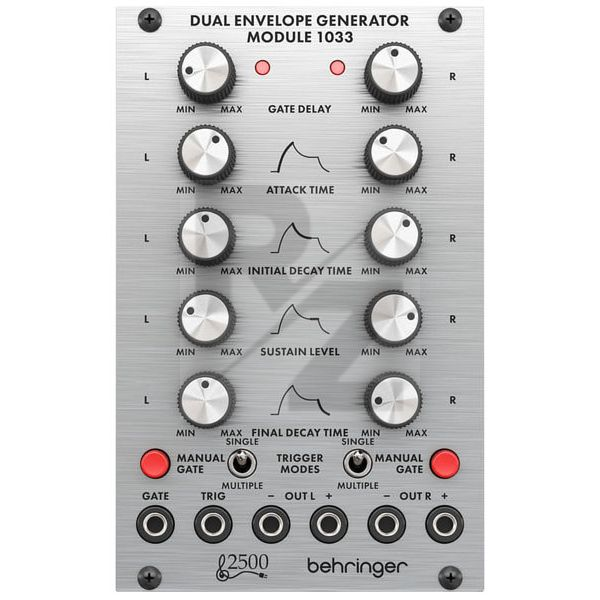

Behringer Dual Envelope Generator 1033
Eurorack Module
Latest User Reviews
does what it promises to do
excellent dadsr module without surprises. will function very well in my personal 2500 clone.
Very cool and faithful to the original
Has all the features of the original Arp 2500 1033, and all of the quirks too - a shared gate input for both EGs (but separate manual triggers), an interesting multi trigger mode, and adjustable gate delay for each envelope - mixing the two outputs with different curves into the 1005 mod amp, for example, allows very complex envelopes to be generated. Build quality seems very good, although would prefer panel-mounted jacks.
Technical Data
- Manufactured by Behringer
- Released in 2020
- Average price : $91
- 2-Channel envelope generator
- Per channel controls for delay, attack, initial decay, sustain level and final decay
- Manual gate button
- Switchable re-trigger mode
- Gate and trigger input for both envelopes
- Positive and inverted signal output per channel
- Current requirement: 40 mA (+12 V) / 20 mA (-12 V)
- Width: 16 HP
- Depth: 42 mm
