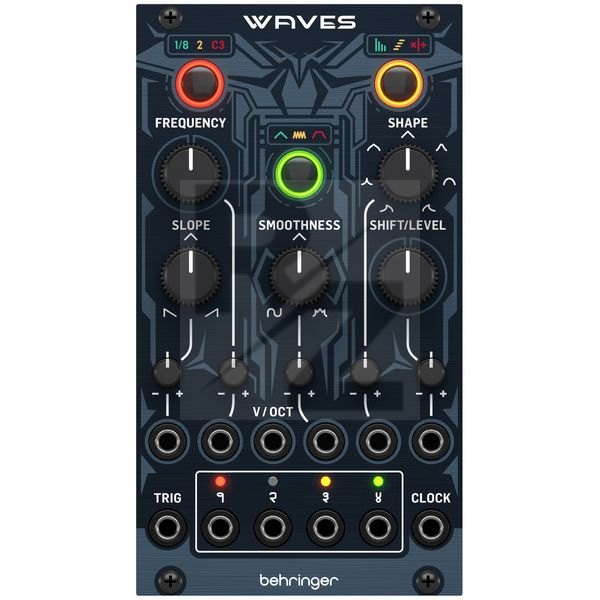

Behringer Waves

Eurorack Module

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Behringer
Functions as LFO, VCO, AD and AR envelope
Frequency range: 2 min. - 2 kHz (extendable via CV offset)
V/Oct tracking and exponential FM
Shape control to cover combinations of linear, exponential, or sinusoidal segments
Smoothing or waveshaping of the output signal possible
All parameters CV-controllable
4 independent outputs with different operating modes, e.g. for phase-shifted function generators, polyrhythmic LFOs and much more
Trigger input for AD / AR modes and LFO reset
Clock input for PLL mode
Current requirement: 50 mA (+12 V) / 20 mA (-12 V)
Width: 14 HP
Depth: 41 mm
