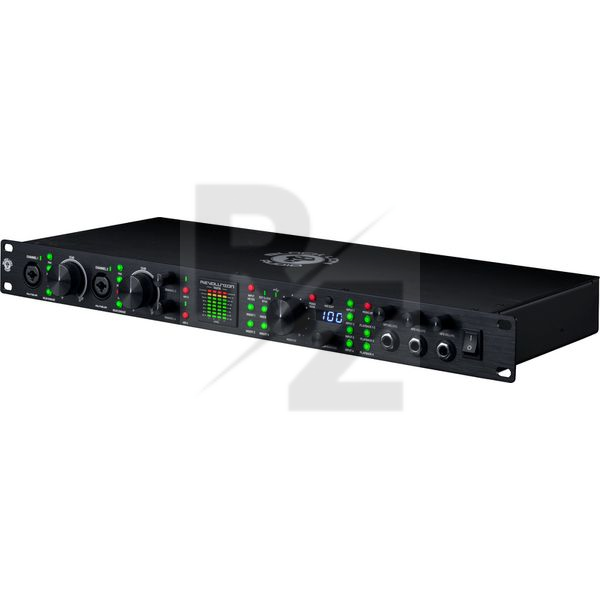

Black Lion Audio Revolution 14x16

Technical Data

• Manufactured by Black Lion Audio
• 14 Inputs and 16 outputs
• Integrated Black Lion Auteur preamplifier on channels 1 and 2
• Precise macro MMC clock
• 3 Stereo headphone outputs with separate control
• Customised headphone mixes per headphone channel
• Can be used as a stand-alone 4-channel preamplifier
• Expandable with 8 additional inputs and outputs via ADAT
• Direct monitoring with mix control and mono switch
• AD/DA conversion: up to 24 bit / 192 kHz
• LED level display
• Switchable 48V phantom power on all XLR inputs
• Volume control
• Dimensions (H x W x D) : 94 x 584 x 269 mm
• Weight : 6.5kg
• Included software packet (Download): Presonus Studio One+ (90 Tage) , Sonarworks Reference Headphones (90 Tage), Audified GK Amplification 3 LE, Audified Mixchecker, Psychic Modulation EchoMelt 3
• 4 Combo inputs Mic/Line: XLR/jack
• 4 Line inserts/returns: 6.3 mm jack
• 4 Line outputs: 6.3 mm jack, balanced
• 3 Stereo headphone output: 6.3 mm jack
• 1 S/PDIF In/Out: RCA
• 1 Word Clock In/Out: BNC-socket
• 1 ADAT In/Out: Toslink
• USB-C connection
