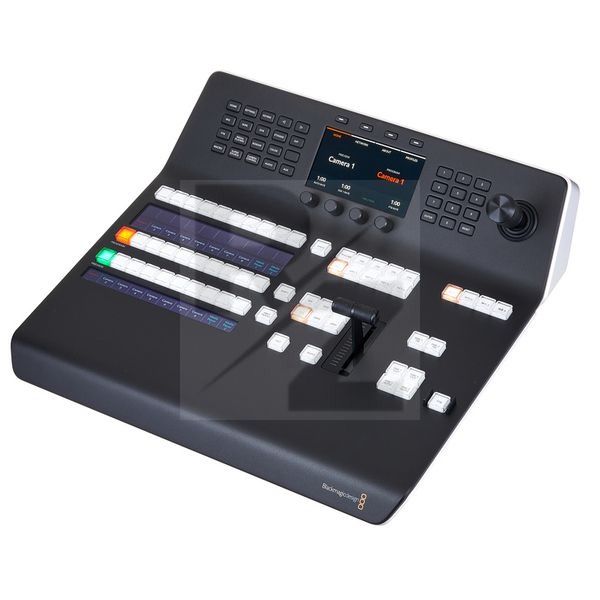

Blackmagic Design ATEM 1 M/E Advanced Panel

Hardware Control Panel

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Blackmagic Design
Released in 2020
Average price : $3756
For controlling ATEM mixers
Suitable e.g. for: Blackmagic ATEM Television Studio HD, ATEM
Production Studio 4K, ATEM 1M/E Production Studio 4K, ATEM 2 M/E Production Studio 4K, ATEM 4 M/E Production Studio 4K
10 Direct Cross Points
20 Shifted Cross Points
Tri-colour LED Crosspoint Buttons
Crosspoint Label: 3-line, 24-character listed LCD
Selectors for the next transition: BKG
Button 1 - Button 4
Selectors for DSK transitions: Audio, Cut, Tie/Preview
4 on-air displays
1 Transition preview
3 LED menu displays
Menu control: 20 keys
10 Dedicated macro keys
1 Destination bus
1 Source selector
1 Fader bar
1 3-axis joystick
1 Numeric keypad
Power supply: AC 110 - 240 V
Power consumption: 45 W
Dimensions : 430mm x 162mm x 389mm
Weight : 5.74kg
2 x Ethernet 1000 / 100 / 10 BaseT
1 x USB-C (firmware updates)
