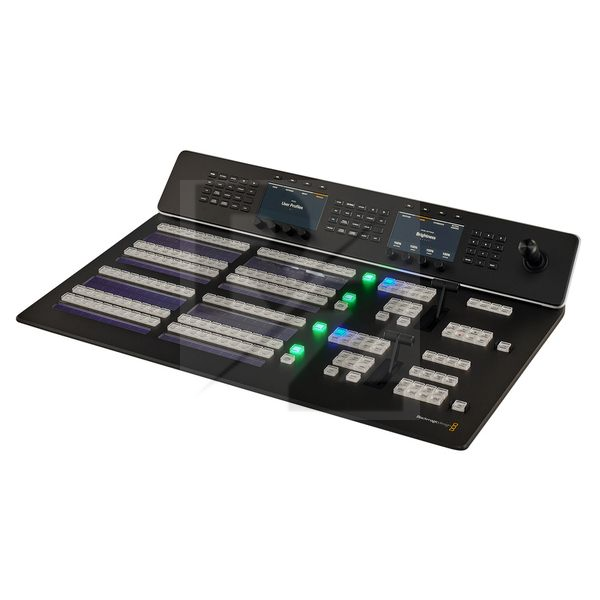

Blackmagic Design ATEM 2 M/E Advanced Panel

Hardware Operating Console for Controlling ATEM Mixers

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Blackmagic Design
Released in 2021
Average price : $8291
E.g. for ATEM 4 M/E Broadcast Studio 4K, ATEM 1 M/E, ATEM 2 M/E Production Switcher, ATEM Television Studio
Connections: Ethernet: 4 x 10/100/1000 BaseT with loop-through output for additional control consoles or computers
Software updates: 1 USB-C for firmware updates
Features: Number of mix/effect blocks: 2
Direct crosspoints: 20
Offset crosspoints: 40
Crosspoint key type: tri-colour LED display
Crosspoint label: LCD with 6 lines of 24 characters
Next transition selectors: 2 BKG, keyer buttons 1-4
On-air display: 8
Power status indicators: None
DSK transition selectors: auto, cut, tie/preview x 2
Transition preview: 2
Transition rate indicators: via main menu
LCD menu indicators: 2
Menu controls: 2 x 20 keys
Dedicated macro keys: 2 x 20
Transport control keys: 8
Destination bus: 2
Source selection bus: 2
Aperture lever: 2
3-Axis joystick: 1
Numeric keypad: 1
Software applications: ATEM Software Control Panel
Operating systems: Mac 10.14 Mojave, Mac 10.15 Catalina or later / Windows 10 64-bit
Power supply: 2 built-in AC power supplies for 110 - 240 V (IEC power connection cable not included)
Redundant power supply: Yes
Power consumption: 150 W
Dimensions: 725 x 485 x 166 mm
Weight : 11kg
