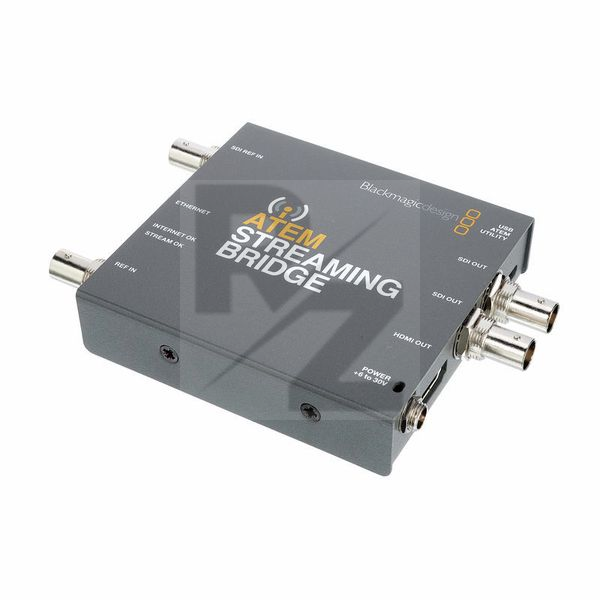

Blackmagic Design ATEM Streaming Bridge
Video Converter
Latest User Reviews
Interesting product with potential
Innovative product for sending high quality video from one location to another. The video quality is very high and the latency is unnoticable.
However it must be noted that it requires an ATEM Pro or better to into it. As a way of sending a high quality video back to a studio it is excellent. It excels in a simple point to point setup.
However it is one way only, from ATEM out over the internet back into the Streaming Bridge and from there into another switcher via HDMI or SDi.
It doesn't support bidirectional communications so not suitable for two way communications without a 3rd party app such as Zoom or WhatsApp being used in parallel to handle the interactions.
But overall, very happy with my purchase.
Does what it says on the tin
Very happy with this product. Does everything it says it will do! Connects with ease to the Atem Mini Pro or Pro ISO.
A very useful box.
Used with the ATEM mini Pro to stream via the internet. Once you've sorted out port-forwarding to get round fire walls it works really well. There's a very good instruction vid by one of the Blackmagic guys on their website which explains exactly what the unit is capable of.
It's also very useful to provide another program output from the ATEM mini pro if plugged directly into the ethernet connection of your unit. This leaves the ATEM mini pro's HDMI output available to provide a multi view out of your inputs, whilst getting a program out on HDMI or SDI from the Streaming bridge.
Not used it much yet, but so far it has performed faultlessly. A great bit of kit.
Technical Data
- Manufactured by Blackmagic Design
- Released in 2020
- Average price : $328
- Can receive an H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video, allowing video to be delivered to remote locations on a local Ethernet network or even around the world via the Internet
- Advanced H.264 codecs for higher quality at extremely low data rates
- Possible production scenario: broadcasters and bloggers collaborate to create global networks of ATEM Mini Pro remote broadcast studios
- The converter is easy to set up: ATEM Software Utility creates setup files that can be emailed to ATEM Mini Pro studios in other locations
- The ATEM Streaming Bridge is ideal for using an ATEM Mini Pro as a remote broadcast studio
- SDI reference inputs: 1x 3G-SDI
- SDI video outputs: 2x 3G-SDI
- SDI audio outputs: 2 channels embedded in HD-SDI
- SDI rates: 1.5 G / 3 G
- Reference input: Black burst and tri-sync
- Ethernet: Ethernet supports 10/100/1000 BaseT
- Updates and configuration: 1x USB type C port for software control and updates
- SDI video standards: 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60; 1080i/50; 1080i/59.94; 1080i/60
- HDMI video standards: 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60
- SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, SMPTE 425 Level A and Level B
- SDI video sampling frequency: 4:2:2
- SDI audio sampling frequency: Standard television sampling rate of 48 kHz and 24 bit
- SDI colour accuracy: 10 bit
- SDI colour space: YUV
- Streaming: ATEM Streaming Bridge supports streaming video input via
- Ethernet with an ATEM Mini Pro or ATEM Mini Pro ISO
- Operating systems: Mac Mojave 10.14, Mac Catalina 10.15 or higher / Windows 8.1 and 10, both 64 bit
- Power consumption: 6 W
- Operating voltage: 6 - 30 V DC
- Dimensions: 134 x 92 x 23 mm
- Weight : 230g
- Includes12V universal power supply with plug adapters suitable for all countries
