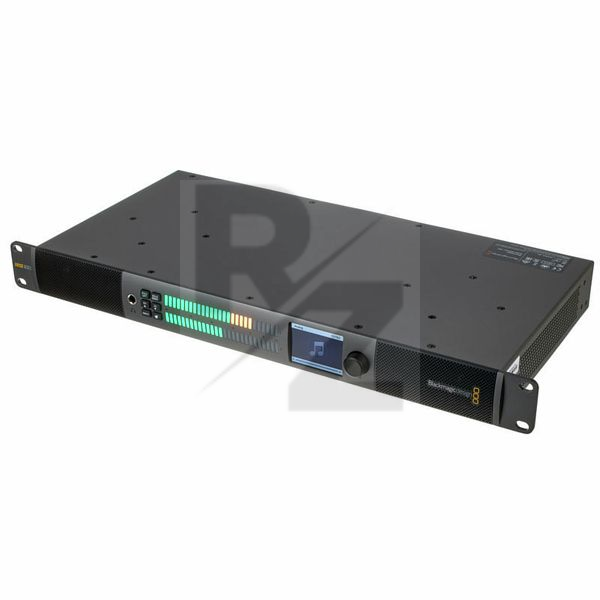

Blackmagic Design Audio Monitor 12G

1 U Audio and 4K Video Monitoring Compact Unit

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Blackmagic Design
Released in 2020
Average price : $1518
Built-in 2.2" LC display with 320 x 240
Built-in speakers with a dual subwoofer system and class D amplifier
Built-in volume control
Audio level display with 2 x 27 LEDs (can display either VU, PPM or loudness)
Audio sampling frequency: 96 kHz and 24 bit
Video sampling frequency: 4:2:2 and 4:4:4
Compatible operating systems: Mac 10.13 High Sierra, Mac 10.14 Mojave or higher / Windows 8.1 and 10
Power consumption: 55 W
Power supply: AC 110 - 240 V
Dimensions : 482mm x 44 (1U)mm x 245mm
Weight : 2.6kg
1 SDI video input
1 SDI video loop-through output
SDI rates: 270 Mbps / 1.5G / 3G / 6G / 12G
1 HDMI 2.0 video output
Multi-rate support: SDI and HDMI are switchable between Standard Definition, High Definition and Ultra High Definition
SDI video loop-through: 1 reclocked connector for 10-bit SD, HD, 3G-SDI, 6G-SDI and 12G-SDI
2 XLR and 2 RCA HiFi analogue audio inputs
Analogue audio outputs: 1 x 6.5 mm headphone jack
1 XLR digital audio input
2 Built-in stereo speakers with 2-way crossover and separate stereo subwoofers
2 AES/EBU audio inputs: 2 Channels balanced 110 Ohm AES/EBU via XLR
SDI audio inputs: 16 channels embedded in SD, HD and Ultra HD 4K
SDI audio outputs: 16 embedded channels with audio pass-through
HDMI audio outputs: 8 channels embedded in SD, HD and 4K
Ethernet: 1 Gbps for product software updates and configuration
Computer interface: USB-C for product software updates and configuration
