Blackmagic Design MC BiDirect. SDI/HDMI 3G wPSU

Compact converter for SDI and HDMI signals

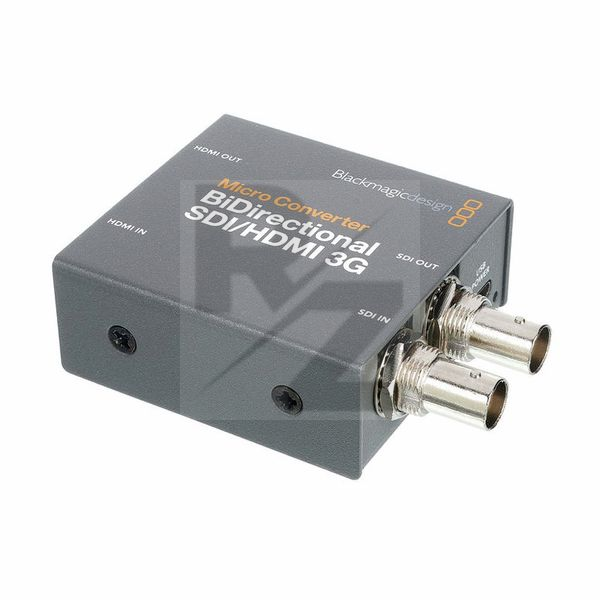

Image Blackmagic Design MC BiDirect. SDI/HDMI 3G wPSU

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

3 years ago

No issues

It works really well for the price. I understand that there may be stronger, more reliable scalers on the market but for a BiDirectional converter that can run 24/7 I have been really impressed. I would consider getting the slightly cheaper version that comes without a Power Supply Unit if I plan on adding in any extra TV's to my system as you can run a USBA to USBC cable to 5 Volt power to turn it on directly from the TV.

4 years ago

So tiny and useful

So tiny and light- smaller than my palm. Very easy to use.

4 years ago

Great product for affordable price

I want to highly recommend Blackmagic Design MC BiDirect. SDI/HDMI 3G wPSU converter. Quite often I have a need to deliver HD signal to distance where traditional HDMI cables are too short. And this is the situation where Blackmagic Design converters can save my life! I just take couple of these converters, SDI cable and I can do my job without any doubt about quality! These converters work in almost any conditions! Highly recommend!

5 years ago

Rock solid converter

It does what is supposed to, definitely getting more for multi-cam setups.

Read all reviews >>

Technical Data

  • Manufactured by Blackmagic Design
  • Released in 2020
  • Average price : $104
  • Simultaneously converts SDI to HDMI and HDMI to SDI, even in different formats
  • Supports all video standards in NTSC, PAL, 720 HD and 1080 HD
  • Supports software updates via USB-C connection
  • With camera control functions for Blackmagic ATEM mixers
  • Supports 3G-SDI and HDMI timecode standards
  • With 3G-SDI technology and internal SDI reclocking
  • SDI video inputs: 1 connector for SD, HD or 3G-SDI
  • SDI video outputs: Automatic adaptation to HDMI video inputs
  • HDMI video inputs
  • HDMI input type A
  • HDMI output type A
  • Multirate support: Automatic detection of SD or HD
  • Power consumption: 2.5 W
  • Power supply: 4.40 - 5.25 V DC
  • Dimensions: 81 x 59 x 25 mm
  • Weight : 174g
  • Includes AC power supply for 100 - 240 V with international socket adapters
