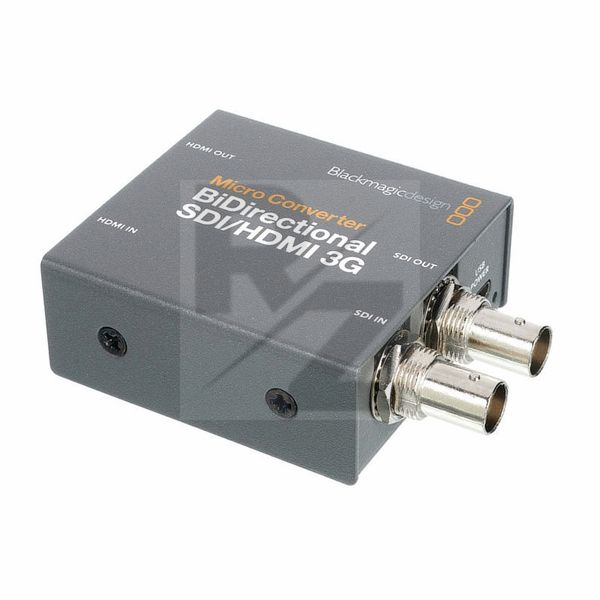

Blackmagic Design MC BiDirect. SDI/HDMI 3G

Technical Data

• Manufactured by Blackmagic Design
• Released in 2020
• Average price : $96
• Simultaneously converts SDI to HDMI and HDMI to SDI, even in different formats
• Supports all video standards in NTSC, PAL, 720 HD and 1080 HD
• Supports software updates via USB-C connection
• With camera control functions for Blackmagic ATEM mixers
• Supports 3G-SDI and HDMI timecode standards
• With 3G-SDI technology and internal SDI reclocking
• SDI video inputs: 1 connector for SD, HD or 3G-SDI
• SDI video outputs: Automatic adaptation to HDMI video inputs
• HDMI video inputs
• HDMI input type A
• HDMI output type A
• Multirate support: Automatic detection of SD or HD
• Power consumption: 2.5 W
• Power supply: 4.40 - 5.25 V DC (power supply not included)
• Dimensions: 81 x 59 x 25 mm
• Weight : 174g
