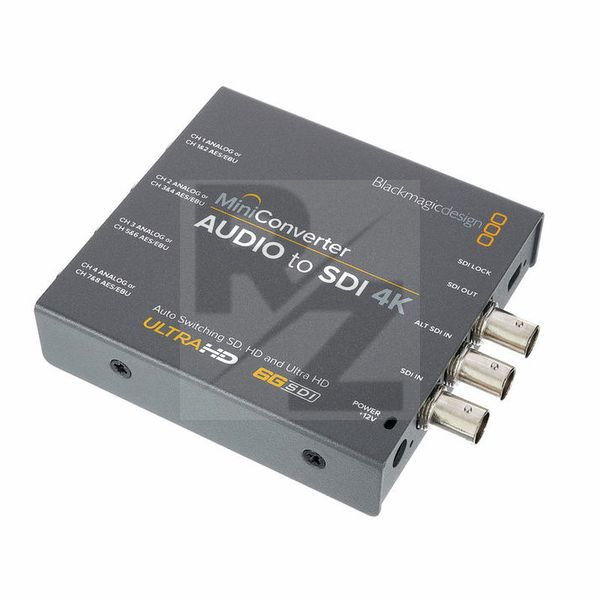

Blackmagic Design Mini Converter Audio-SDI 4K

Signal converter

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Blackmagic Design
Released in 2020
Average price : $393
For embedding audio into any SDI source in SD and 4K formats up to 4Kp/30 DCI
Audio is embedded as analogue or AES/EBU signals via 1/4" connectors from devices such as mixers and analogue VTRs
Multi-rate support: automatic detection of SD, HD and 6G-SDI
Updates and configuration via high-speed USB 2.0 (480 Mbps)
Reclocking
Power supply: +12 V universal power supply with plug adapters suitable for all countries included
Power consumption: 8.4 W
Dimensions: 115 x 92 x 23 mm
Weight : 216g
SDI video inputs: 1 SD, HD or 6G SDI input
1 ALT-SDI input (which is automatically switched to if the main input fails)
SDI video outputs: 1 output for embedded SDI
Analogue audio inputs: 4 channels balanced analogue audio
Digital audio inputs: 8 channels of balanced AES/EBU audio
