Blackmagic Design Mini Converter UpDownCross HD

Standard Converter

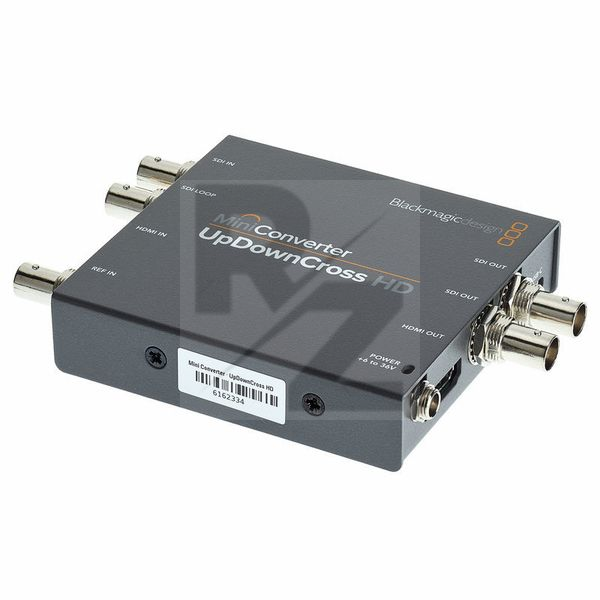

Image Blackmagic Design Mini Converter UpDownCross HD

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

2 years ago

Must have get out of jail free

Works just fine and is simple to use. Solves lots of video problems without much fuss. Dip switches for settings are a bit fiddly but ok.

3 years ago

Great quality and rock solid output. Useability could be better.

Once set up as you want it. this device is perfect - flawlessly converting formats. Great build quality too. If your use case is fit and forget then it's flawless.

If you carry it around as a general problem solver and have to grapple with the DIP switches then it can be frustrating working out what's on and what's off on the settings diagram screen-printed on the case. Could so easily be solved - although ideally it would have individual switches for resolution, frame rate, interlacing, etc.

5 years ago

excellent magical box

This is an excellent inexpensive box to convert any video signal. It magically transforms you signal to whatever you want.

5 years ago

Very handsome product

The build quality is very good and the signal quality is excellent!

5 years ago

Multiple Formats simply converted

Makes life a whole lot easier when connecting different sources to my BMD Atem 1/me. Including Level A Level B incompatibility!

5 years ago

Great converter

These are great get out of jail tool box converters for virtually any resolution to any resolution but note, there's no scaling included

Read all reviews >>

Technical Data

  • Manufactured by Blackmagic Design
  • Released in 2020
  • Average price : $216
  • Converts any SD or HD video format to any other SD or HD video format
  • SDI and HDMI inputs and outputs with reference input for integrated resynchroniser
  • High quality Teranex algorithms
  • Automatic audio delay for perfect AV synchronisation
  • Reclocking
  • Multi-rate support: automatic detection of incoming SDI signals in HD or standard definition
  • SDI video inputs: 1 connection for SD, HD or 3G SDI video and 1 external reference input
  • HDMI video inputs: HDMI input type A
  • SDI video outputs: 2 SDI outputs, including 1 SDI output with loop through
  • HDMI video outputs: HDMI output type A
  • Output supports the EDID data of the monitor
  • SDI rates: 270 Mbit, 1.5G, 3G
  • Reference inputs: Black Burst and Tri-Sync for SD and HD
  • Updates and configuration via USB
  • Includes 12 V universal power supply with plug adapters suitable for all countries
