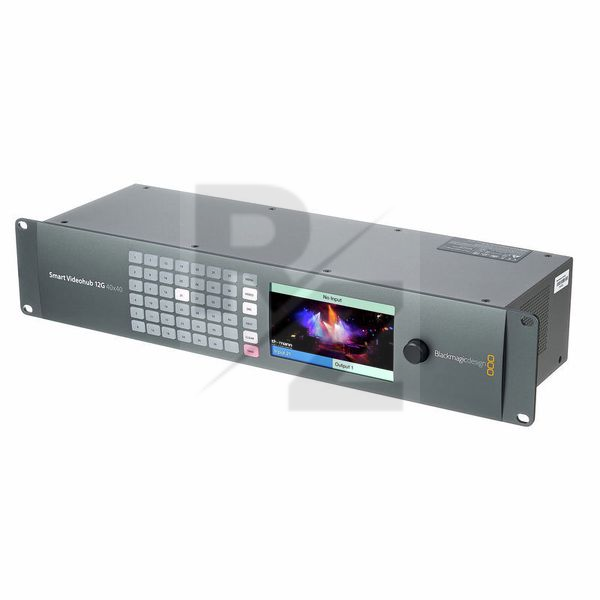

Blackmagic Design Smart Videohub 12G 40x40

12G-SDI router 40x40

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Blackmagic Design
Released in 2020
Average price : $5974
Supports any SD, HD or Ultra HD SDI formats from the same router
Offers 40 inputs and 40 outputs, plus connections for video reference and redundant power supply
Full HD LCD for monitoring and displaying signal path identifiers
Signal distribution can be selected and executed directly at the touch of a button or with the rotary dial controls
12G SDI technology supports all SDI video standards up to 2160p60
40x SDI inputs 10-bit SD-SDI, HD-SDI and 12G-SDI
40x SDI outputs 10-bit SD-SDI, HD-SDI and 12G-SDI
Black burst and tri-level sync input for SD, HD and 4K
Reference output with termination switching on loop through
Automatic detection of SD, HD or 12G-SDI
Simultaneous routing of 4K, HD and SD video
40 Buttons for local video hub control
6 Buttons and scroll wheel for LCD or RJ45 Ethernet control
Configurable via front panel LCD or via RJ45 Ethernet
1x RS-422 router control input for crossbar crosspoint switching control
All SDI outputs automatically switch between standard definition and high definition or 12G SDI video formats
Integrated 5" LCD for video and menu settings
Precision-machined metal front panel
Height: 2U
Depth less than 15 cm
Power supply: 2x 90 - 240 V AC (IEC power cable not included)
Weight : approx. 4.5kg
