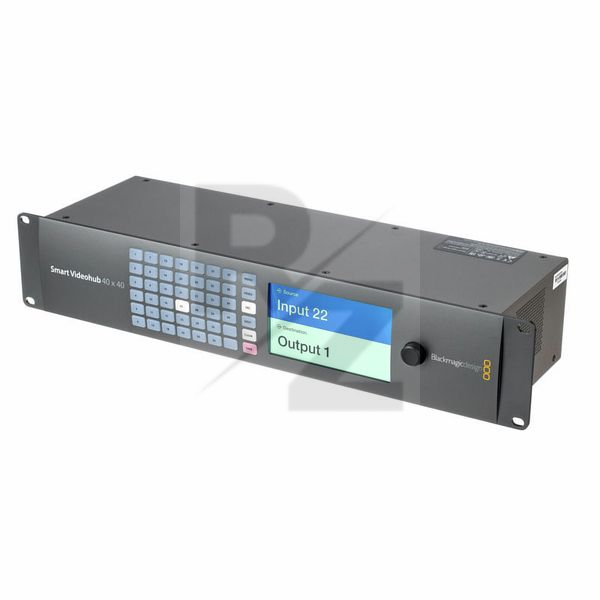

Blackmagic Design Smart Videohub 6G 40x40

6G-SDI router 40x40

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Blackmagic Design
Released in 2020
Average price : $3598
Supports any SD, HD or Ultra HD SDI formats on the same router
Offers 40 inputs and 40 outputs as well as connections for video reference and redundant power supply
5" LCD for monitoring and displaying signal path identifiers
Signal distribution can be selected and executed directly at the touch of a button or with the rotary dial controls
6G SDI technology supports all SDI video standards up to 2160p30
40 SDI inputs 10-bit SD-SDI, HD-SDI and 6G-SDI
40 SDI outputs 10-bit SD-SDI, HD-SDI and 6G-SDI
Black burst and tri-level sync input for SD, HD and 4K
Reference output with termination switching on loop through
Automatic detection of SD, HD or 6G-SDI
Simultaneous routing of 4K, HD and SD video
40 Buttons for local video hub control
6 Buttons and scroll wheel for LCD or RJ45 Ethernet control
Configurable via the front panel LCD or via RJ45 Ethernet
RS-422 router control input for crossbar crosspoint switching control
All SDI outputs automatically switch between standard definition and high definition or 6G SDI video formats
Integrated 5" LCD for video and menu settings
Precision-machined metal front panel
Height: 2U
Depth less than 15 cm
Power supply: 2 x 90 - 240 V AC (IEC power cable not included)
Power consumption: 58 W
Dimensions : 482mm x 88mm x 160mm
Weight : approx. 4.5kg
