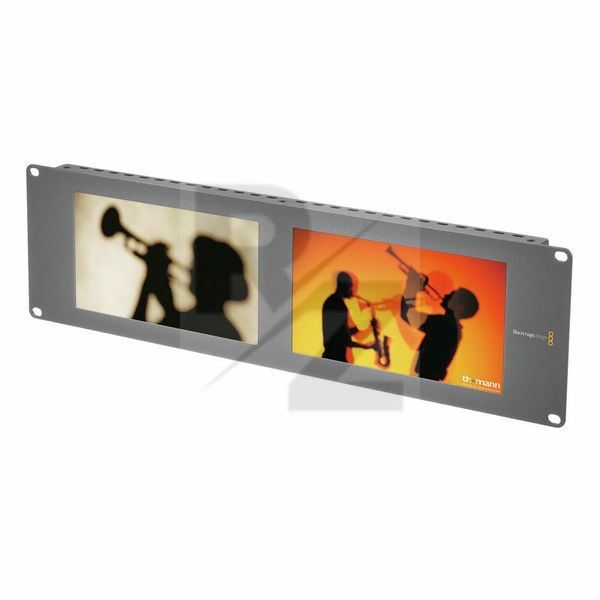

Blackmagic Design SmartView Duo

Technical Data

• Manufactured by Blackmagic Design
• Released in 2020
• Average price : $774
• 3U size
• For monitoring SDI/HD-SDI and 3G-SDI via software control
• Screens can be adjusted via Ethernet connection
• SDI video inputs: automatically switch between SD, HD and 3G-SDI signals (reclocked loop-through output)
• Multi-rate support: automatic detection of 2K, HD or SD inputs
• Updates and configuration via USB 2.0 High Speed (480 Mb/s)
• Ethernet network: 10/100 BaseT with loop-through filter
• Tally: 9-pin SUB-D connector
• Power supply: 12 V universal power supply unit (included in delivery)
• Operating voltage range: 12-15 V
• Power consumption: < 20 W
• Dimensions: (W x H x D): 482 x 133 x 35 mm
• Weight : 1.43kg
• SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M
• SDI colour space: REC 601, REC 709
• SDI auto switching: Automatically selects between SD, HD SDI and 3 Gb/s SDI
• Video sampling frequency: 4:2:2 and 4:4:4
• Supported SDI formats: 525i/59.94 NTSC, 625i/50 PAL, 720p/50, 720p/59.94, 720p/60, 1080p/23.98, 1080p/24, 1080p/25, 1080p/29;97, 1080p/30, 1080p/50, 1080p/59.94, 1080p/60, 1080PsF/23.98, 1080PsF/24, 1080PsF/25, 1080PsF/29.97, 1080PsF/30, 1080i/50, 1080i/59.94, 1080i/60
• 2K format support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24/PsF, 2K DCI 25/PsF
• Compatible operating systems: Mac 10.12 Sierra, Mac 10.13 High Sierra or later, Windows 8.1 and 10
• Display element: TFT Active Matrix LCD
• Display resolution: 800 x 480 pixels
• Response time: < 15 ms
• Contrast ratio: typically 500:1
• Colour depth: 16.7 million colours
