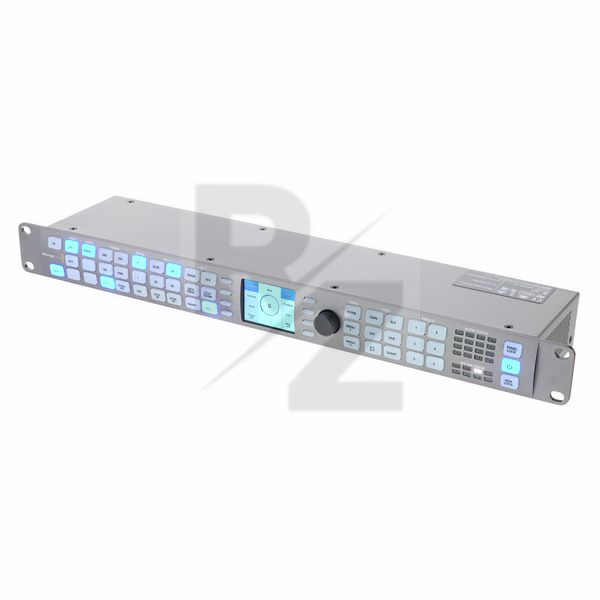

Blackmagic Design Teranex Express

Real-time Broadcast Standard Converter for SD, HD and Ultra HD

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Blackmagic Design
Released in 2020
Average price : $1706
Provides visually transparent conversions in a quality that is the standard for large broadcasters and studios around the world
1089 Up, down and norm conversions in SD
HD and Ultra HD at full 10-bit quality
High-quality de-interlacing, noise reduction, automatic cadence detection, removal and correction of edited content, adjustable scaling and aspect ratio conversion
All with complete timecode and multi-channel audio conversion
Dolby AC-3 pass-through on all conversions
Dolby E pass-through except during video frame rate conversions
SDI connections can be switched between standard definition, high definition and ultra HD
SDI can be switched between 270 Mbit/s standard definition SDI, 1.5 Gbit/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD
Fixed and variable aspect ratio conversions in real time
With noise reduction, cadence detection including insertion/removal, scene cut detection, colour correction and proc-amp control
Up, down and cross conversions and SD/HD/UHD standard conversions in real time
Backlit buttons
Status LEDs and LCD with user-friendly on-screen menus
Power supply: 100 - 240 V / 50 - 60 Hz
IEC input (IEC cable not included)
19" Rack compatible
Dimensions : 482mm x 44mm x 125mm
Weight : 2kg
