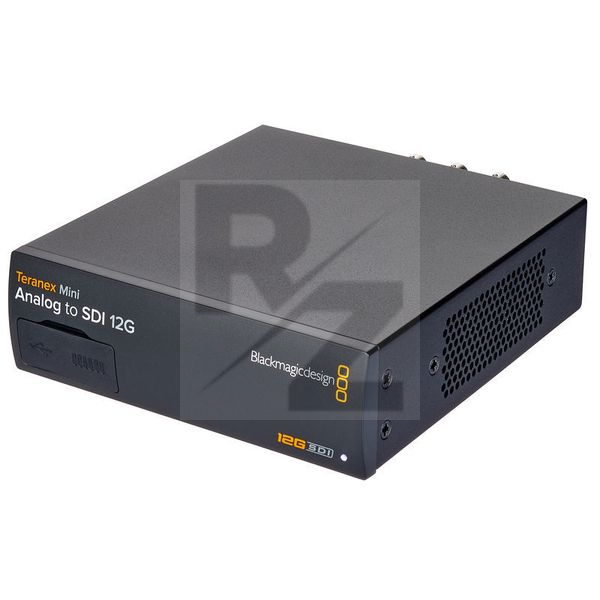

Blackmagic Design Teranex Mini Analog - SDI 12G

Technical Data

• Manufactured by Blackmagic Design
• Released in 2021
• Average price : $750
• Converts incoming analogue video signals to SD, HD, 6G and 12G-SDI
• Converts signals from analogue devices such as Betacam SP, VHS, set-top boxes, game consoles and HDV cameras to video signals in SD/HD/Ultra HD SDI video up to 2160p/60
• SDI video outputs: 2x 12G SDI outputs
• Analogue video inputs: FBAS, Y/C or components
• Analogue audio inputs: 2 channels balanced analogue audio via XLR connectors, right XLR socket can be configured for timecode input
• Digital audio inputs: 4 channels of 110 Ohm balanced digital audio via XLR connectors, right XLR connector can be configured for time code input
• Multi-rate support: SDI output switchable between HD for composite and S-Video and Ultra HD for component HD
• Updates and configuration: USB or Ethernet
• Reclocking
• SD video standards: 525i/59.94 NTSC, 625i/50 PAL
• HD video standards: 720p/50, 720p/59.94, 720p/60 1080i/50 1080i/59.94 1080i/60 1080p/25 1080p/29.97 1080p/50 1080p/59.94
• Ultra HD video standards: 2160p/25, 2160p/29.97, 2160p/50, 2160p/59.94
• SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
• SDI video rates: SDI video ports are switchable between standard definition and high definition
• SDI video sampling frequency: 4:2:2 and 4:4:4
• SDI audio sampling rate: Standard television sampling rate of 48 kHz and 24 bit
• SDI colour accuracy: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K
• SDI colour space: REC 601, REC 709
• Analogue video standards: 525i/59.94 NTSC, 625i/50 PAL
• Analogue colour space: REC 601, REC 709
• Analogue colour accuracy: 4:2:2
• Compatible operating systems: Mac Catalina 10.15, Mac Big Sur 11.1 or higher / Windows 10, 64 bit
• Power supply: built-in international AC power supply with IEC C14 socket (IEC power cable not included)
• 100 - 240 V AC input voltage
• Power supply via Ethernet: can be 48 V DC via PoE (Power over Ethernet)
• Power consumption: 16 W
• Dimensions: 140 x 44 x 170 mm
• Weight : 640g
