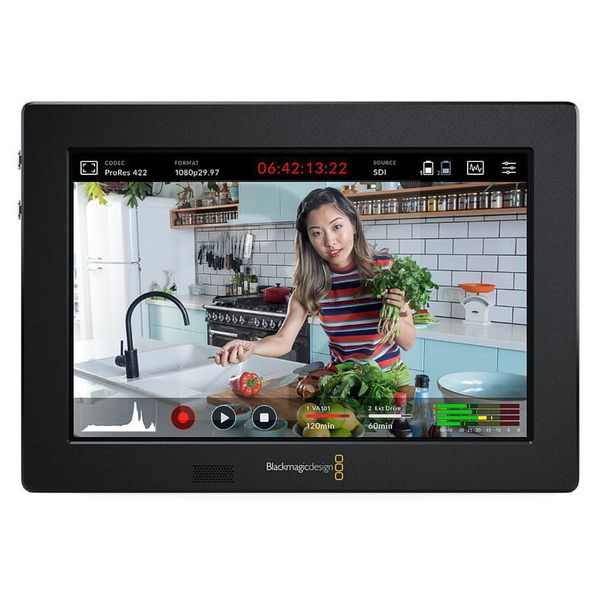

Blackmagic Design Video Assist 7" 3G

Technical Data

• Manufactured by Blackmagic Design
• Released in 2020
• Average price : $934
• With dual SD card recorder
• Scope display and viewfinder in one
• With higher quality recording codecs on board
• Adds a larger screen, four integrated scopes, enhanced focus assist, tally indicator and 3D LUTs to any SDI or HDMI camera
• Supports formats up to 1080p/60
• Built-in mono speaker
• Screen dimensions: 7 inches with 1920 x 1200 pixels
• Screen brightness: 310 nits
• Remote control: 1 x 2.5 mm LANC socket for recording start/stop
• Memory type: SDXC UHS-I and SDHC UHS-I SD cards
• Supports the following SD cards: DS, HS, SDR12, SDR25, DDR50 and SDR104
• SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M
• SDI metadata support: HD RP188
• Audio sampling frequency: Standard television sampling frequency of 48 kHz and 24 bit
• Video sampling frequency: 4:2:2 YUV
• Colour accuracy: 10 bit
• Colour space: REC 601, REC 709
• Multi rate support: SDI and HDMI switch between 270 Mbps, 1.5 Gbps and 3 Gbps
• HDMI video standards/SD video standards: 525i/59.94 NTSC, 625i/50 PAL
• HD video standards: 720p/50, 720p/59.94, 720p/60 1080p/23.98, 1080p/24, 1080p/25, 1080p/29.97, 1080p/30, 1080p/50, 1080p/59.94, 1080p/60 1080i/50, 1080i/59.94, 1080i/60
• HDMI colour accuracy: 10 bit
• Supported codecs: ProRes 422 HQ / ProRes 422 / ProRes 422 LT / ProRes 422 Proxy / DNxHD 220x / DNxHD 145 / DNxHD 45 / DNxHD 220x MXF / DNxHD 145 MXF / DNxHD 45 MXF
• Scopes: waveform, RGB parade, vectorscope, histogram
• Display modes: Scopes with picture-in-picture or as faded-in overlay with adjustable opacity
• Power supply: 1 external 12 V power supply unit with adapters
• Suitable for all countries (included)
• Operates with Sony-compatible NP-F batteries (batteries not included)
• Dimensions : 193mm x 130.5mm x 37mm
• Weight : 0.825kg
• 1 x SDI video input
• 1 x SDI video output
• SDI rates: 270 Mbit, 1.5G, 3G
• 1 x HDMI video input
• 1 x HDMI video output
• Analogue audio inputs: 2 balanced mini-XLR inputs with phantom power
• Analogue audio outputs: 1 x 3.5 mm headphone jack
• SDI audio inputs: 16 channels embedded in SDI
• SDI audio outputs: 16 channels embedded in SDI
• HDMI audio inputs: 8 channels embedded in HDMI
• HDMI audio outputs: 8 channels embedded in HDMI
• SD interface: dual SD slots for UHS-I cards
• Computer interface: 1 USB-C port for initial setup, software updates and software control via Video Assist Utility Blackmagic Video Assist '' 3G
