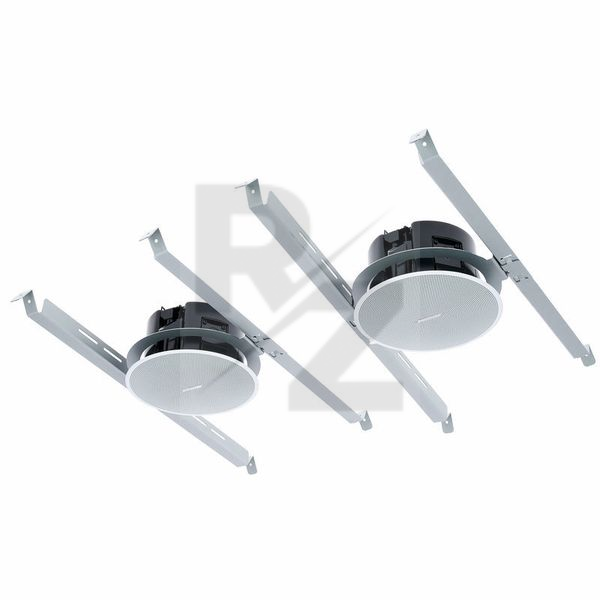

Bose DesignMax DM2C-LP white

Technical Data

• Manufactured by Bose
• Released in 2020
• Average price : $340
• Equipped with: 1x 2.25" Driver
• Installation container with low installation depth
• Easy installation thanks to QuickHold mounting arms
• Removable logos
• Euroblock connections
• FrontAccess for connection and troubleshooting from the front
• Frequency response (-10dB): 85 - 19 kHz
• Dispersion angle: 180° Conical
• Power: 16 W RMS, 64 W peak
• Sensitivity (SPL / 1W @ 1m): 84 dB
• Maximum level (1m): 96 dB / 120 dB peak
• Transformer outputs: 70 V: 1.2, 2.3, 4.5, 9 W, bypass
• Transformer outputs: 100 V: 2.3, 4.5, 9 W, bypass
• Impedance: 16 Ohm
• Dimensions of front grille (diameter × depth): 198 x 110 mm
• Installation container dimensions (diameter × depth): 156 x 99 mm
• Ceiling cutout (diameter): 165 mm
• Maximum ceiling thickness: 39 mm
• Weight of each ceiling speaker: 1.6 kg
• Colour: White
