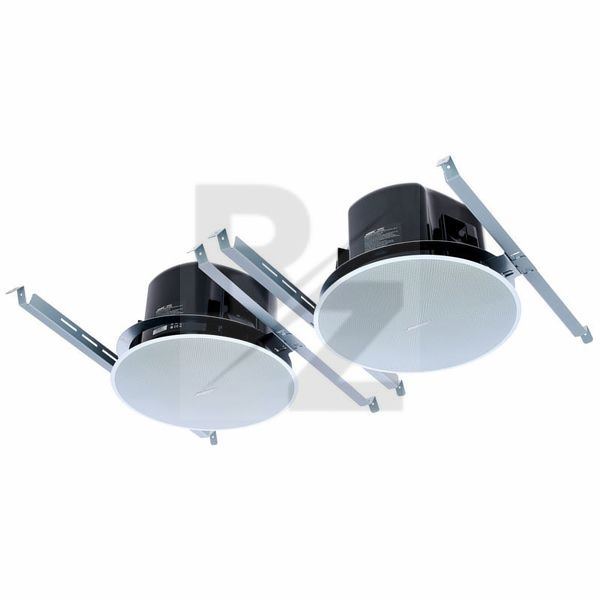

Bose DesignMax DM6C white

Ceiling Speakers

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Bose
Released in 2020
Average price : $865
Equipped with: 1x 6.5" Woofer and 1x 1.25" tweeter
Easy installation thanks to QuickHold mounting arms
Removable logos
Euroblock connections
FrontAccess for connection and troubleshooting from the front
Frequency response (-10 dB): 59 - 20,000 Hz
Dispersion angle: 145° Conical
Power: RMS 100 W / Peak 400 W
Sensitivity (SPL / 1W @ 1m): 87 dB
Max SPL @ 1m: 107 dB / 113 dB peak
Transformer outlets 70 V: 2.5, 5, 10, 20, 40, 80 W, bypass / 100 V: 5, 10, 20, 40, 80 W, bypass
Impedance: 8 Ohm
Front grille dimensions (diameter x depth): 356 x 239 mm
Installation container dimensions (diameter x depth): 288 x 223 mm
Ceiling cutout (diameter): 292 mm
Maximum ceiling thickness: 57 mm
Weight per ceiling speaker: 6.5 kg
Colour: White
Package quantity: 1 Pair
