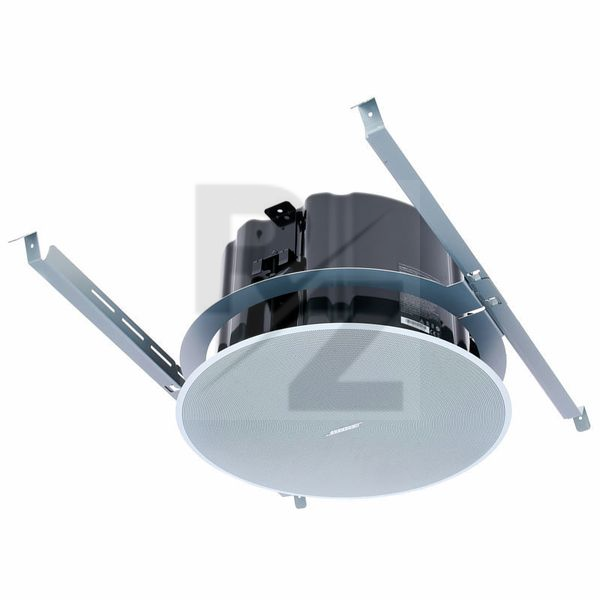

Bose DesignMax DM8C white

Ceiling Speaker

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Bose
Released in 2020
Average price : $701
Equipped with: 1x 8" Woofer and 1x 1" tweeter
Easy installation thanks to QuickHold mounting arms
Removable logos
Euroblock connections
FrontAccess for connection and troubleshooting from the front
Frequency response (-10 dB): 52 - 20,000 Hz
Dispersion angle: 175° Conical
Power: RMS 125 W / Peak 500 W
Sensitivity (SPL / 1W @ 1m): 90 dB
Max. SPL @ 1m: 111 dB / 117 dB peak
Transformer outputs: 70 V: 2.5, 5, 10, 20, 40, 80 W, bypass / 100 V: 5, 10, 20, 40, 80 W, bypass
Impedance: 8 Ohm
Dimensions (front grille diameter x depth): 409 x 255 mm
Installation container dimensions (diameter x depth): 342 x 241 mm
Ceiling cutout (diameter): 349 mm
Maximum ceiling thickness: 76 mm
Weight : 9.57kg
Colour: White
