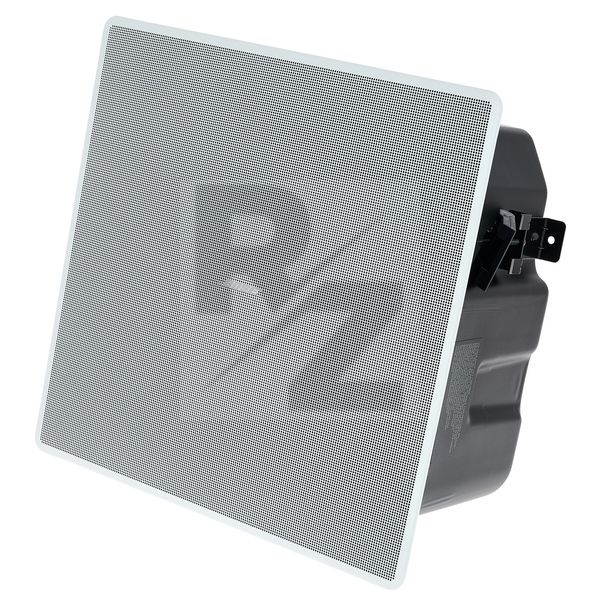

Bose EdgeMax EM180

Technical Data

• Manufactured by Bose
• Released in 2021
• Average price : $865
• PhaseGuide technology
• Nominal horizontal dispersion angle of 180°
• High frequency compression driver
• 8" Woofer supports boundary loading close to the wall
• 2-Way passive crossover with transformer for 70 V / 100 V audio systems
• Spring-loaded brackets with snap-in function
• Magnetically fixed grille
• Certified according to UL1480A for safe installation in ceilings
• Frequency response (+/- 3 dB): 50 Hz to 18 kHz
• Frequency range (-10 dB): 45 Hz to 20 kHz
• Nominal dispersion: 75° Vertical, 180° horizontal
• Continuous power rating: 125 W (500 W peak)
• Sensitivity (SPL / 1 W at 1 m): 93 dB SPL
• Max. SPL at 1 m: 114 dB SPL (120 dB SPL peak)
• Drivers: 1 x 20 cm woofer, 1 x compression driver
• Nominal impedance: 8 Ohm (transformer-bridged)
• Colour: White
