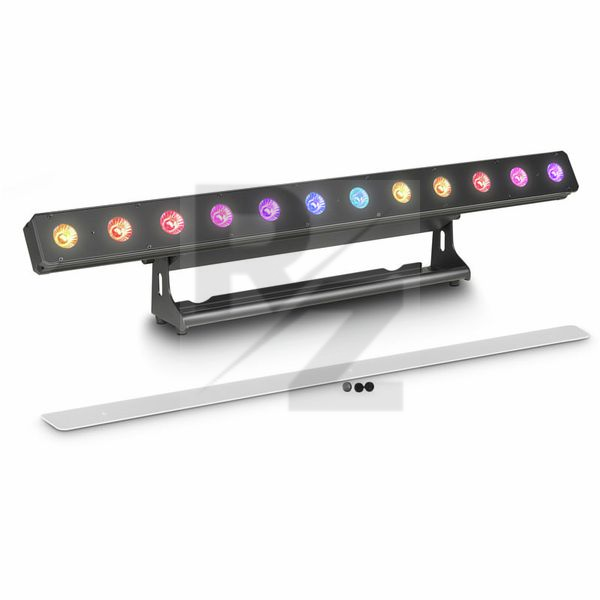

Cameo PixBar 600 Pro
Washer LED Bar
Latest User Reviews
The Cameo PixBar Pro600 is powerful tool to have in any lighting rig. Along with the RGBWA the addition of UV really makes this a truly versatile lighting fixture.
Working in theatre I have used the PixBar as a cyc ground row, for washes on scenic pieces, as footlights and using the UV effect for specialist pieces.
There is great light output and great colour mixing especially having the addition of the white and amber for more subtle tones.
Controlling the units primarily with DMX I find the 6ch mode is great for simple washes, and I have used the 74ch mode to create fire effects having control over each individual pixel.
Technical Data
- Manufactured by Cameo
- Released in 2015
- Average price : $511
- Convection-cooled
- RDM-enabled
- The macros are aligned with LEE filters
- 3 Shades of white and 4 selectable dimmer curves
- Single Pixel Control: All LEDs can also be individually adjusted to achieve impressive Chase effects
- Colour spectrum: RGBWA+UV
- LED Number: 12
- LED Type: 12 W
- Refresh rate: 3000 Hz
- Coverage pattern: 23 ° at 1120 lx, 41 ° at 600 lx
- With a removable diffusing lens for uniform, glare-free light
- DMX Input: XLR 3-pin male, XLR 5-pin male
- DMX Output: XLR 3-pin female, XLR 5-pin female
- DMX Mode: 6-Channel, 8-channel, 10-channel, 72-channel, 76-channel
- DMX Functions: Single Pixel Control, 14 Auto Modes, Sound Mode, Colour Macros, Dimmer, Strobe
- Standalone Modes: 14 Auto Modes, Sound Mode, Static, Strobe
- Controls: Enter, Value Up, Value Down, Mode
- Indicators: LC Display
- Power supply: 110 V AC - 240 V AC / 50 - 60 Hz
- Power consumption: 160 W
- Power supply connection: Power Twist
- Illuminance: Single LED 1190 lx 1m
- Dimensions without mounting bracket (W x H x D): 900 x 120 x 75 mm
- Housing material: Aluminium/Metal
- Housing colour: Black
