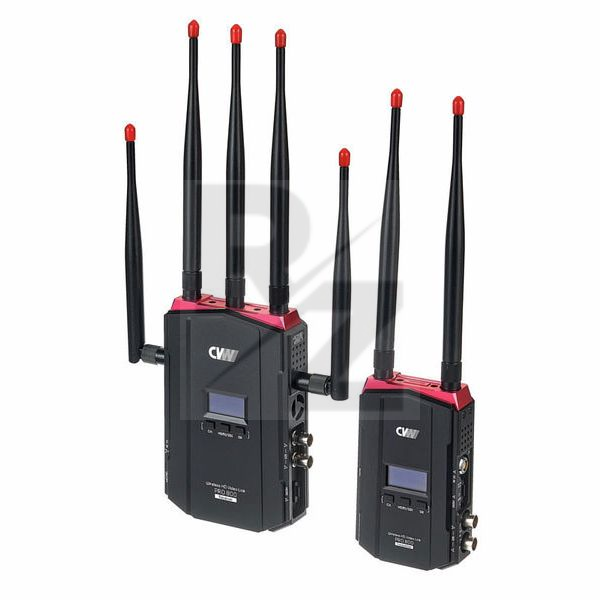

CVW Crystal Video Pro800 Set

Zero Delay Video Radio Link Set

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by CVW Crystal Video
Released in 2021
Average price : $4267
For distances up to 800 m without DFS
Ultra-low latency under 1 ms
Range up to 800 m (line-of-sight)
Video formats: 1080p (23.98/24/25/30/50/60 fps), 1080i (50/59.94/60), 720P (50/59.94/60 fps)
Uncompressed 4:2:2 at 10bit
Audio formats: PCM, DTS-HD, Dolby True HD
Frequency Range (EU): 5150 - 5250 MHz / 5725 - 5825 MHz
3GSDI and HDMI FullHD
Bandwidth: 40MHz
Without DFS (indoor application)
Frequency selection: manual with buttons (control via LED display)
Mounting options: ¼" internal thread (bit shoe adapter included)
Time code transmission
Power consumption: 12W (Tx), 8W (Rx)
Temperature operating range: 0°C to 40°C
TX dimensions (W x H x D): 84 x 130 x 31 mm
RX dimensions (W x H x D): 111 x 163 x 32 mm
Case dimensions (W x H x D): 335 x 121 x 310 mm
Weight TX: 0.338 kg
Weight RX: 0.450 g
Weight complete: 3.4 kg
Colour: Black
High-quality case with custom-fit foam
1 x Transmitter (with antennas)
1 x Receiver (with + antennas)
2x BNC cable (80 cm)
1 x Power supply unit
2 x DC adapter cable (D-Tap to 2pin Lemo compatible)
Hot shoe adapter for both units
2 x V-Mount adapter
8 x Antennas
