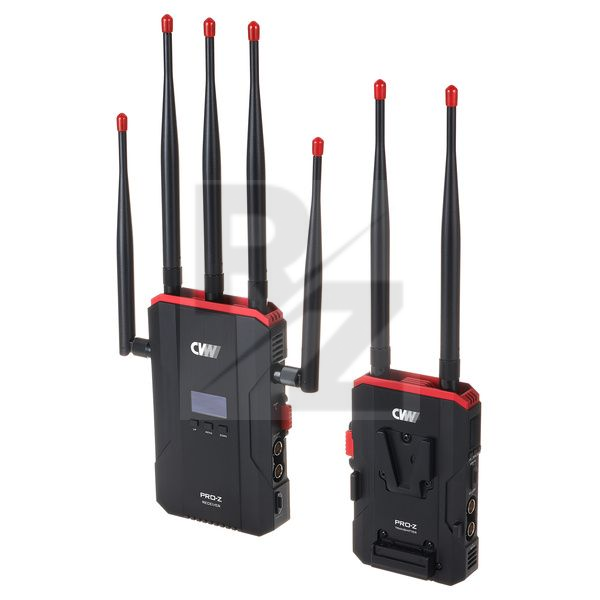

CVW Crystal Video ProZ

Technical Data

• Manufactured by CVW Crystal Video
• Released in 2021
• Average price : $4462
• For distances up to 800 m without DFS (indoor use)
• Ultra-low latency under 1 ms
• Range up to 800 m (with line of sight)
• Video formats: 1080p (23.98/24/25/30/50/60 fps), 1080i (50/59.94/60), 720P (50/59.94/60 fps), (uncompressed 4:2:2 at 10bit)
• Audio formats: PCM, DTS-HD, Dolby True HD
• Frequency selection: Manual with buttons (control via LED display)
• Channel scanning function to find the best radio channel
• Time code transmission
• Smart Cooling - intelligent fan control
• V-Mount power supply
• Transmitter can be mounted between camera and V-mount battery - power supply is looped through
• Video inputs transmitter: 3GDI In with loop-through + HDMI In
• Transmitter audio inputs: Embedded audio at 3GSDI and HDMI.
• Transmitter mounting options: 3 x ¼" thread
• Video outputs receiver: 2 x 3SDI and 1 x HDMI
• Audio outputs receiver: embedded 3GSDI and HDMI
• Receiver mounting options: 2x ¼" and 1x 3/8"
• Quick deployment as transmitter and receiver fit in the case with antennas installed
• Metadata transmission
• Power consumption: 12 W (Tx), 8 W (Rx)
• Temperature operating range: 0°C to 40°C
• Transmitter dimensions (W x H x D): 92 x 135 x 35 mm
• Receiver dimensions (W x H x D): 110 x 165 x 35 mm
• Dimensions of the case (W x H x D): 305 x 140 x 332 mm
• Weight of transmitter: 0.420 kg
• Weight of receiver: 0.484 kg
• Weight complete: 3.4 kg
• Colour: Black
• Material: Metal
• 1 Transmitter
• 1 Receiver
• 7 Normal antennas + 2 mushroom antennas
• 2 BNC cables
• 1 DC adapter cable (D-Tap to 2pin Lemo compatible)
• 1 Hot shoe adapter with articulated arm
• High-quality plastic case with custom-fit foam insert
