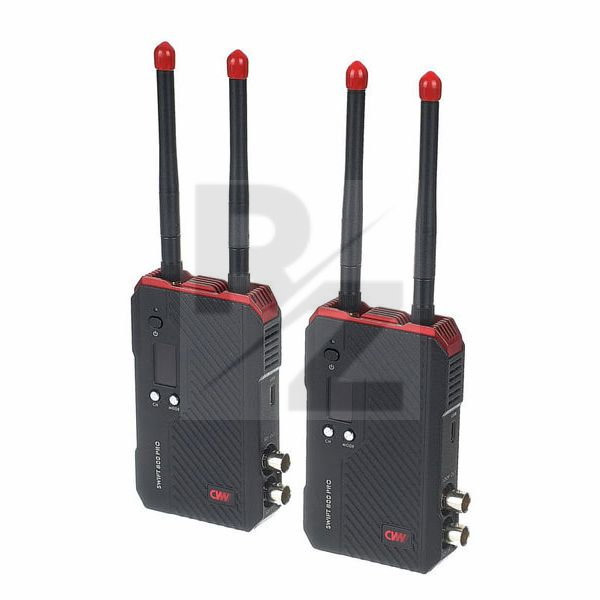

CVW Crystal Video Swift800 Pro

Technical Data

• Manufactured by CVW Crystal Video
• Released in 2020
• Average price : $799
• For distances up to 250 m with DFS
• Ultra-low latency under 70 ms
• Range up to 250 m (with visual contact)
• DFS function (automatic channel switch for outdoor applications)
• Full HD video possible
• App for monitoring and recording with mobile devices
• Bit rate up to 25 Mbps
• Flexible power supply: DC (for power supply via the camera), SONY NP-F battery mount and via the supplied power supply unit
• Fan can be switched on and off at the push of a button
• OLED screen display for: Battery display including low charge warning, fan, resolution, signal strength
• App features at a glance: Recording, supports image effects processing (waveform, auxiliary focus, 3D-LUT), photo recording, spectral scanning, frequency modification, channel selection
• Receiver connectors: 2x SDI Out (3G-SDI) / HDMI Out / Micro-USB / DC In 7 - 36 V / NP-F battery mount / 2x antennas
• Transmitter connectors: SDI In (3G-SDI) / SDI Loop Out, (3G-SDI) / HDMI In / Micro-USB / DC In, 7 - 36 V / NP-F battery mount / 2x antennas
• Power consumption of transmitter: < 7.2 W
• Power consumption of receiver: < 6 W
• 1/4" Internal thread on the bottom
• Metal housing
• Dimensions (H x W x D): 115 x 70 x 21 mm
• Weight : 220g (per device)
• Transport bag
• 1x Transmitter (with NP-F battery mount)
• 1x Receiver (with NP-F battery mount)
• 5x Antennas
• 1x Power supply unit (12 V / 2 A)
• 1x Hot shoe adapter + mounting accessories
