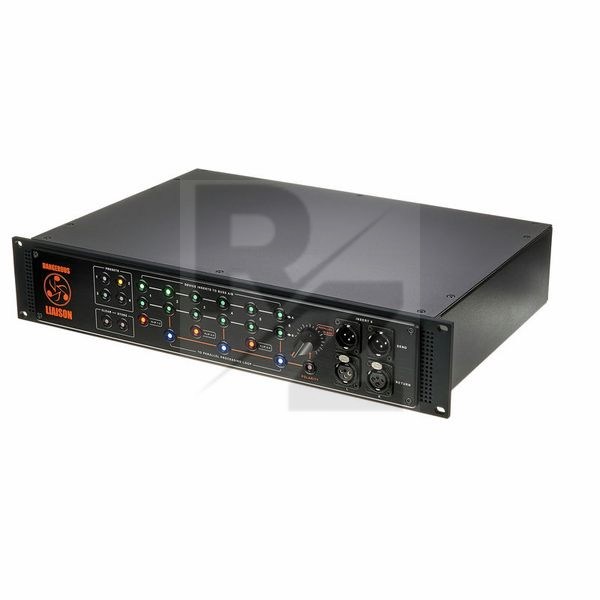

Dangerous Music Liaison
Mastering Patchbay - Router
Latest User Reviews
Amazing device
This unit is perfect for my workflow and it helps to make good decisions in a very flexible way. It's the centerpiece of my analogue mastering chain.
Top
This makes the flow super fast and let you dial different chains on the fly at a touch of a button, something that would have been impossible with normal patchbay. I use all my external gear much more with this thing.
I will consider another one in the future just to connect external fx processors and dial them in the order i want and the ones i want.
Imagine a tape delay followed by a a second tape delay with different settings followed by a reverb...now try again but with inverted direction by just pressing a button.
And btw you can send your processors to parallel processing.
Just amazing.
The older version i think was looking better but this one looks great.
Buttons do not feel that nice.
The worse of all....The power button is on the back.What where you thinking when u did that?
You have to take that into consideration when placing the rack.
Sounds is very neutral.
There some pops/clicks when you engage the buttons.
Overall recommended.
Technical Data
- Manufactured by Dangerous Music
- Released in 2013
- Average price : $4389
- 6 Stereo insert loops - assignable to 2 stereo buses
- Flexible Potent Parallel processing loop, route, switch, matrix, flip and audition without delay, quality loss or cracking
- Restore any tracking, mixing, or mastering settings
- Seamless integration with Dangerous Master
- True hard-wire bypass relays
- Frequency Response (Passive Section) +0 -0.1 dB from 10 Hz to 100 kHz
- Frequency Response (Active Section) +0 -0.1 dB from 10 Hz to 100 kHz
- Maximum Level> +28 dBu
- Noise floor <-94.5 dBu 22 Hz - 22 kHz bandwidth
- THD + N <0.002%
- IMD <0.003%
- Crosstalk rejection (Passive Section)> 124 dB
- Crosstalk rejection (Active Section)> 113 dB
- Input Impedance: 20 kOhm
- Output Impedance: 20 Ohm
- Format: 19 "/ 2U
